Application

The Liquiphant S is a point level switch for use in all types of liquids

– for process temperatures between –60 °C and 280 °C (–76 °F to 540 °F) (300 °C (572 °C) for max. 50 cumulative hours; without thermal shock restriction)

– for pressures up to 100 bar (1450 psi) – for viscosities up to 10,000 mPa*s (cSt)

– for density >= 0.5 g/cm (SGU) or >= 0.7 g/cm3(SGU), other configurations on request

– Foam detection on request

The function is not affected by flow, turbulence, bubbles, foam, vibration, solids content or buildup, making the Liquiphant an ideal substitute for float switches.

FTL70: Compact design, for pipes also

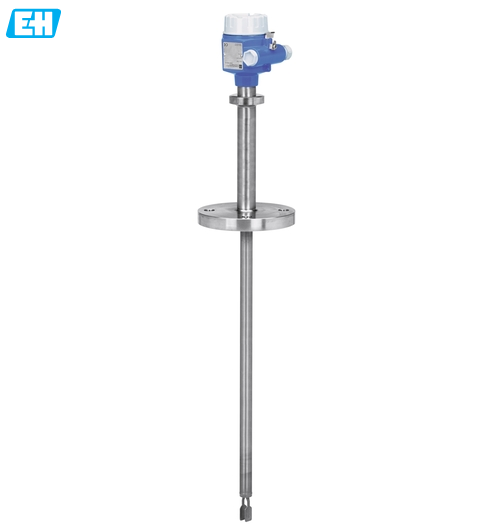

FTL71: Extension pipe up to 3 m (9.8 ft) and up to 6 m (20 ft) on request

For use in very aggressive liquids, the fork and process connection are available in the highly corrosion-resistant material AlloyC22 (2.4602).

EEx ia, EEx de and EEx d protection enable it to be used in hazardous areas.

Your benefits

• Use in safety systems requiring functional safety to SIL2 in accordance with IEC 61508/IEC 61511-1

• Welded, gas-tight feed-through ensures maximum safety, even in the event of damage to sensor

• With process connections from ¾" and small fork dimensions, it is also suitable where space is tight.

• A wide range of process connections allows for universal application.

• The right connection for every process control system: e.g. NAMUR, relay, DC-PMP, • PROFIBUS PA interface

• No adjustment: quick, low-cost startup

• No mechanical moving parts: maintenance-free
