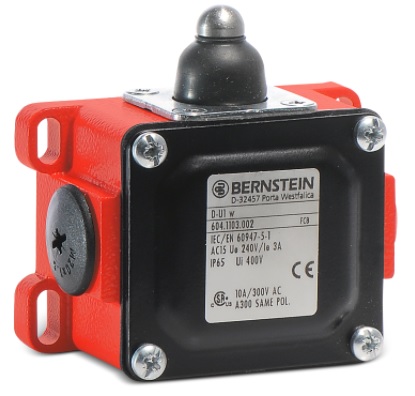

Limit switch Type D , Bernstein Viet Nam
Thanks to its heavy duty enclosure with particularly tough design of actuator and switching systems, the switch type D is ideally suited for harsh operating conditions.
- Protection class IP 65 to VDE 0470 T1
- Enclosure: Aluminium pressure die-casting
- Cover: Sheet aluminium
- Actuator can be repositioned by 4 x 90°
- Cable entry 2 x M20 x 1.5
- Connection designation conforming to DIN EN 50013
- Sturdy contacts
- Hard wearing guide bushes
- Slow-action and snap-action contacts
- Versions: 1 NC / 1NO, 2 NC, 2 NO, 3 NC, 3 NO, overlapping contacts
- All NC contacts with
in the circuit diagram are positively opening contacts - Latching function on request
|
Art. No. |
Type |
|
3914211065 |
HW-E-EINR.D KU22 |
|
3914350924 |
AH-EINR.D |
|
6041103002 |
D-U1 W |
|
6041113006 |
D-U1 PW |
|
6041118229 |
D-U1Z RW |
|
6041121010 |
D-U1 HW |
|
6041135019 |
D-U1 AH |
|
6041153156 |
D-SU1 W |
|
6041168162 |
D-SU1 RW |
|
6041171164 |
D-SU1 HW |
|
6041185173 |
D-SU1 AH |
|
6041303134 |
D-UV1Z W |
|
6041318140 |
D-UV1Z RW |
|
6041321142 |
D-UV1Z HW |
|
6041803046 |
D-E2 W |
|
6041803090 |
D-A2 W |
|
6041813835 |
D-A2Z PW |
|
6041818052 |
D-E2 RW |
|
6041818741 |
D-A2Z RW |
|
6041835107 |
D-A2 AH |
---
