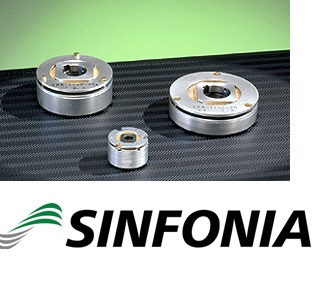

SBR-152-0450EZ Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

SBR-152-0450EZ Brake Sinfonia Vietnam ANSdanang

<SBR-152-0450EZ>
Type SBR-152-0450EZ
Static friction torque Nm 45
Rated voltage DC-V 24
Power consumption W (at20°C) 34
Weight kg 3.6
Unit:mm





Response Characteristics

Type SBR-152-0450EZ
Armature pull-in time　　　　ta (ms) 120
Armature release time　　　　tar (ms) 50



Allowable workload / Max speed / Inertia J

Type SBR-152-0450EZ
Allowable workload (J) Per single time 1500
Total workload 1.0×106
Max speed (r/min) 3600
J (kgm2) 4.5×10-4
Number of stops Normal holding (0r/min) 2000000
Emergency braking 200
Heat resistance class H
Initial armature pull-in voltage (at20°C) Less than DC15
Initial armature release voltage (at20°C) More than DC1V
Mounting direction Free
