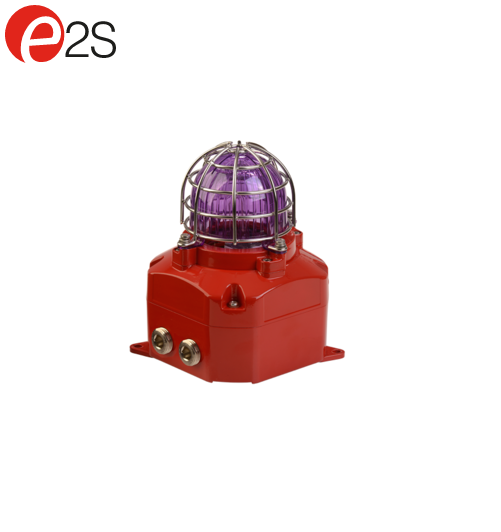

Thiết bị báo động (đèn+còi) (Alarm Horn Sounder & Xenon Strobe Beacon)
Xuất sứ: UK
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: E2S VIET NAM
Mr. BảoThiết bị báo động (đèn+còi) (Alarm Horn Sounder & Xenon Strobe Beacon) - E2S
Model: D2XC1X10DC024A1G/M
Specification:
|
Energy:
|
10 Joules (10Ws)
|
|
Flash rate:
|
1Hz (60 fpm)
|
|
Peak Candela:
|
1,000,000 cd – calculated from energy (J)
|
|
Effective Intensity cd:
|
500 cd – calculated from energy (J)
|
|
Peak Candela:
|
101,784 cd* – measured ref. to I.E.S.
|
|
Effective Intensity cd:
|
288.8 cd* – measured ref. to I.E.S.
|
|
Lens colours:
|
Amber, Blue, Clear, Green,
Magenta, Red & Yellow |
|
Voltages DC:
|
24Vdc; 48Vdc
|
|
Voltages AC:
|
115Vac; 230Vac
|
|
Ingress protection:
|
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13 |
|
Enclosure material:
|
Marine grade LM6 aluminum alloy
|
|
Colour:
|
Red (RAL3000), Grey (RAL7038)
|
|
Lens material:
|
Borosilicate glass dome with PC prismatic lens cover
|
|
Guard:
|
Stainless Steel dome guard as standard
|
|
Cable entries:
|
2 x M20x1.5, 2 × 1/2"NPT, 1 × 3/4"NPT
|
|
Stopping plugs:
|
Nickel Plated Brass plugs included
|
|
Ground/Earth stud:
|
M5
|
|
Terminals:
|
0.5 – 2.5mm² (20-14 AWG)
|
|
Line monitoring:
|
Blocking diode included
EOL can be factory fitted |
|
Operating temp:
|
-40 to +50°C [-40° to +122°F]
|
|
Storage temp:
|
-40 to +70°C [-40° to +158°F]
|
|
Relative humidity:
|
95%
|
|
Weight:
|
DC: 1.5kg/3.31Ibs AC:1.75kg/3.86lbs
|
|
* All candela data is representative of performance with clear lens at optimum voltage.
|
|
