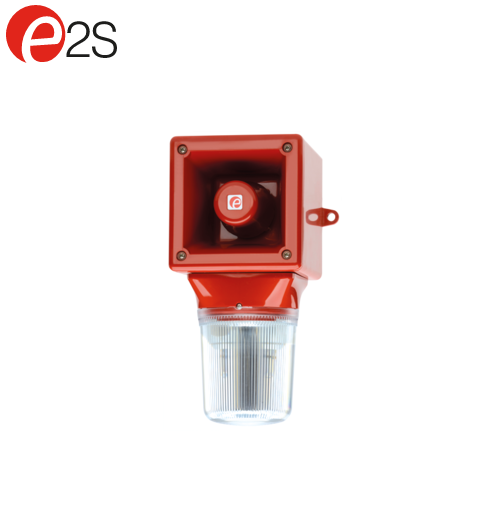

Thiết bị báo động (đèn+còi) (Alarm Sounder & Xenon Strobe)
Xuất sứ: UK
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: E2S VIET NAM
Mr. BảoThiết bị báo động (đèn+còi) (Alarm Sounder & Xenon Strobe) – E2S
Model: AB105STR
Specification:
|
Sounder:
|
|
|
Maximum output:
|
112dB(A)
1m [103dB(A)10ft/3m] |
|
Nominal output:
|
105dB(A)
1m +/-3dB Tone 2 {96dB(A)10ft/3m] |
|
No. of tones:
|
32 (UKOOA / PFEER compliant)
|
|
No. of stages:
|
Alarm horn:3, Xenon Beacon (DC only):2
Double strike pattern can be remotely switched |
|
Volume control:
|
Max. 105dB(A); Min. 96dB(A) – Tone 2
|
|
Effective range:
|
60m/197ft @ 1KHz
|
|
Stage switching:
|
Negative (Reverse polarity switching on DC units)
|
|
Beacon:
|
|
|
Energy:
|
5 Joules (5Ws)
|
|
Flash rate:
|
1Hz (60 fpm)
DC units: Optionally 1.5Hz & double strike |
|
Synchronisation:
|
1Hz flash rate automatically synchronised
|
|
Peak Candela:
|
500,000 cd – calculated from energy (J)
|
|
Eff. Intensity cd:
|
250 cd – calculated from energy (J)
|
|
Peak Candela:
|
49,788 cd* – measured ref. to I.E.S.
|
|
Eff. Intensity cd:
|
125 cd* – measured ref. to I.E.S.
|
|
Tube life:
|
70% emissions after 8 million flashes
|
|
General:
|
|
|
Voltages DC:
|
24V dc (10-30V dc); 48V dc (35-60V dc)
[DC units can use 24V ac for single stage applications.] |
|
Voltages AC:
|
24V ac; 115V ac; 230V ac
|
|
Ingress protection:
|
IP65
|
|
Enclosure material:
|
High impact UL94 V0 & 5VA FR ABS
|
|
Lens material:
|
UV stable PC UL94 V0 FR
Bayonet lens fixing , Anti-tamper locking screw. |
|
Cable entries:
|
2 x M20 clearance gland entries in side & back
|
|
Terminals:
|
0.5 to 1.5mm² cables.
|
|
Operating temp:
|
-25 to +55°C [-13° to +131°F]
|
|
Storage temp:
|
-40 to +70°C [-40° to +158°F]
|
|
Relative humidity:
|
90% at 20° [68°F]
|
|
Weight:
|
DC: 1.00kg/2.2Ibs AC:1.25kg/2.75Ibs
|
|
Candela measurements representative of performance with clear lens at optimum voltage.
SPL data +/-3dB(A). Measured at optimum voltage. |
|
