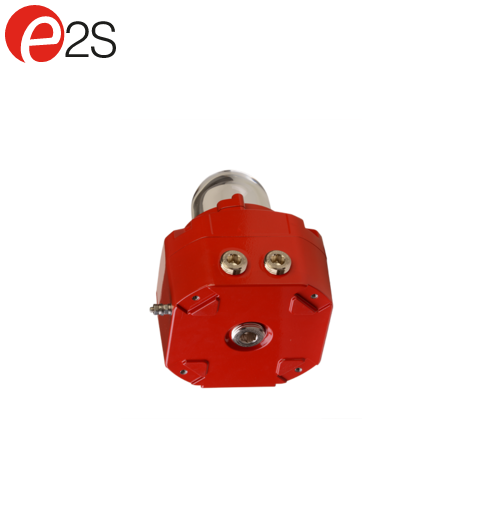

Mr. BảoĐèn báo (Beacon) - E2S
Model: D2XB1 LED
Specification:
|
Energy:
|
5 Joules (5Ws)
|
|
Source:
|
Xenon strobe
|
|
Modes:
|
1Hz flash (60 fpm)
1.3Hz flash (80 fpm) 1.5Hz (90fpm) Double flash |
|
Effective cd:
|
18.18 cd – UL1971
|
|
Peak Candela:
|
500,000 cd – calculated from energy (J)
|
|
Effective cd:
|
250 cd – calculated from energy (J)
|
|
Voltages:
|
24Vdc – 20-28Vdc
|
|
Ingress protection:
|
IP rating per EN60529:IP66
Type rating per UL50E/NEMA250:4/4X/3R/13 |
|
Enclosure material:
|
Marine grade LM6 aluminum alloy
|
|
Colour:
|
Red (RAL3000)
|
|
Lens colour:
|
Clear
|
|
Lens material:
|
Borosilicate glass dome
|
|
Cable entries:
|
2 x M20x1.5, 2 × 1/2"NPT, 1 × 3/4"NPT
|
|
Stopping plugs:
|
Nickel Plated Brass plugs included – brass or stainless steel optional
|
|
Mounting:
|
Conduit mount via 3/4" NPT entry
Surface mount via supplied lug pack (user installed) |
|
Ground/Earth stud:
|
M5
|
|
Terminals:
|
0.5 – 2.5mm² (20-14 AWG)
|
|
Line monitoring:
|
Blocking diode included
EOL can be factory fitted |
|
Operating temp:
|
-40 to +50°C [-40° to +122°F]
|
|
Storage temp:
|
-40 to +70°C [-40° to +158°F]
|
|
Relative humidity:
|
95%
|
|
Weight:
|
1.5kg/3.31Ibs
|
