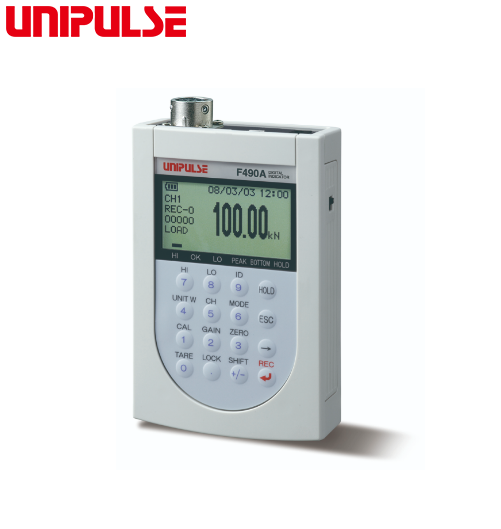

Màn hình hiển thị (Portable Digital Indicator) - Unipulse

Model: F490A

General performance:
Internal power source AA alkaline batteries or nickel metal hydride batteries (4)
External power source Dedicated AC adapter (for 100V AC)
Current consumption When a 120Ω sensor is connected: Approx. 60mA (back light off)
When a 120Ω sensor is connected: Approx. 70mA (back light on)
Backup power source Set values and record data are maintained by the lithium battery (warranty period 5 years or more)
Continuous use time When a 350Ω sensor is connected: Approx. 30 hours (back light off)
When a 120Ω sensor is connected: Approx. 12 hours (back light off)
Operating conditions Temperature: -10℃ to +40℃
Humidity: 80%RH or lower(non-condensing)
Dimensions 86(W)×132(H)×30(D) mm (not including projections)
Weight Approx. 290g (including the battery weight approximately 95g)
