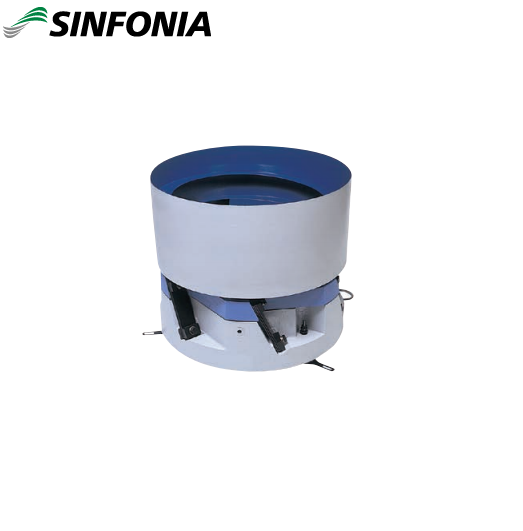

Máy cấp phôi tự động cho mọi kích cỡ phôi (Part Feeder_Steady delivery of workpieces of all sizes)
Xuất sứ: Japan
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: SINFONIA VIET NAM
Mr. BảoMáy cấp phôi tự động (Part Feeder)
Steady delivery of workpieces of all sizes
Model: ER-75B
Specifications:
| Model | ER-25B | ER-30B | ER-38B | ER-45B | ER-55B | ER-65B | ER-75B | ||
| Drive unit outer diameter(mm) |  260 |
310 |
390 |
460 |
560 |
660 |
760 |
||
| Drive unit height(mm) | 198 | 225 | 265 | 285 | 325 | 325 | 325 | ||
| Drive unit weight(kg) | 30 | 48 | 81 | 115 | 160 | 200 | 260 | ||
| Leaf-spring attachment angle(degre) | 20 | ||||||||
| Rated voltage(V) | 200(*1) | ||||||||
| Rated current(A) | 1.0 | 1.5 | 2.0 | 2.5 | 5.0 | 5.0 | 5.0 | ||
| Vibration frequency(Hz) | 50〜90 | ||||||||
| Unprocessed bowl diameter(mm) (cylindrical) |
250 | 300 | 375 | 450 | 550 | 650 | 750 | ||
| Max. bowl diameter(mm) (cylindrical) |
420 | 500 | 600 | 700 | 830 | 980 | 1130 | ||
| Max. amplitude(mm) (periphery of standard cylindrical bowl) |
1.2 | 1.4 | |||||||
| Max. loaded weight(kg) (workpieces + bowl weight) |
8 | 12.5 | 17 | 26 | 70 | 85 | 125 | ||
| Cross section area of power cable(mm2) | 0.75×3cores | 1.25×3cores | 2.0×3cores | ||||||
| Compatible controllers(*2) | AC 200V | C10-1VF/1VFEF | C10-3VF/3VFEF | C10-5VF/5VFEF | |||||
| AC 100V | *2 | C10-3VF/3VFEF+C10-TR | — | ||||||
| *1 With an AC100V power source, use C10-TR transformer (sold separately). *2 C10-1VF/1VFEF+C10-TR |
