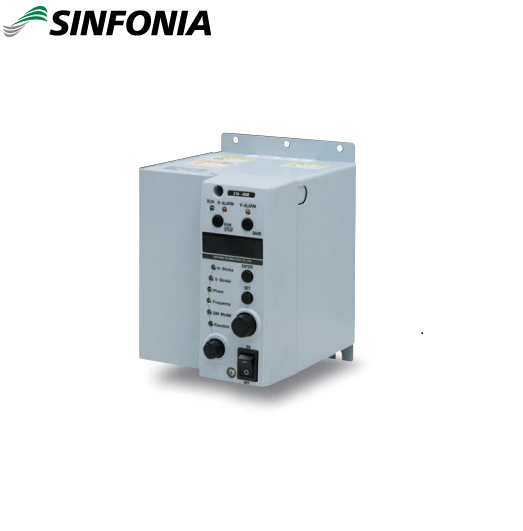

Máy cấp phôi chuyển động kép (Dual Motion Parts Feeder)

Simple and easy start up

Model: C10-4DM

Specifications

Model

C10-4DM

Input power AC200-230V ±10% 50/60Hz
Control system PWM system
Output Voltage 0~190V
Vibration frequency 28~45Hz, 65~120Hz, 90~180Hz
Max. current horizontal: 4A
vertical: 2A
Oparating mode Standard drive Automatic tuning to horizontal resonance point. By amplitude phase control without frequency setting
Additional
features
Constant phase difference control Horizontal/vertical amplitude phase difference kept constant
Speed selection Choice of 4 pre-set speeds by external signal
Start/Stop control Stops and starts by external signal
Output signal Outputs signal tuned to unit operation
Soft start Start-up time 0.2~4.0 seconds
On/Off delay timer Delay time 0.2~60 seconds
Sensor power source 3P power plug gives DC12V, max. 80mA
Synchronized
power source
Function Power source synchronized to parts feeder operation (RUN)
Control system On/Off control through a triac
Output voltage As power source input to controller
Other Max. current 2A
Noise resistant voltage Above 1000V
Ambient temperature range 0〜40℃
Ambient humidity range 10~90% (No condensation)
Applicable Space Indoor (Place where no corrosive gas, and dust.)
Color of case Japan Paint Industry Association U75-70D
Weight 2.0kg
Compatible equipment DM-30C, 38C, 45C, 65C
DMS-15C, 20C, 25C, 30C, 38C, 45C
