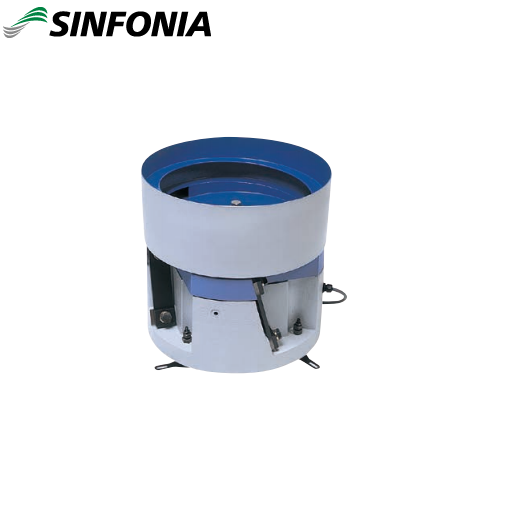

Máy cấp phôi tự động (Parts Feeder)
Xuất sứ: Japan
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: SINFONIA VIET NAM
Mr. BảoMáy cấp phôi tự động (Parts Feeder)
For handling a wide range of very small, precision workpieces
Model: EA-45
Specifications
| Model | EA-15B | EA-20B | EA-25 | EA-30 | EA-38 | EA-45 | ||
| Drive unit outer diameter(mm) |  165 |
210 |
260 |
310 |
390 |
460 |
||
| Drive unit height(mm) | 133 | 155 | 193 | 225 | 265 | 285 | ||
| Drive unit weight(kg) | 8 | 16 | 30 | 48 | 81 | 115 | ||
| Leaf-spring attachment angle(degree) | 15 | |||||||
| Rated voltage(V) | 200(*1) | |||||||
| Rated current(A) | 0.35 | 0.8 | 1.5 | 2.0 | 2.5 | 3.0 | ||
| Vibration frequency(Hz) | 100〜180 | |||||||
| Unprocessed bowl diameter(mm) (cylindrical) |
150 | 200 | 250 | 300 | 375 | 450 | ||
| Max. bowl diameter(mm) (cylindrical) |
250 | 330 | 420 | 500 | 600 | 700 | ||
| Max. amplitude(mm) (periphery of standard cylindrical bowl) |
0.6 | 0.8 | ||||||
| Max. loaded weight(kg) (workpieces + bowl weight) |
2.3 | 4 | 8 | 12.5 | 17 | 26 | ||
| Cross section area of power cable(mm2) | 0.75×3cores | 1.25×3cores | ||||||
| Compatible controllers | AC 200V | C10-1VF/1VFEF | C10-3VF/3VFEF | |||||
| AC 100V | C10-1VF/1VFEF+C10-TR | C10-3VF/3VFEF+C10-TR | ||||||
| *1 With an AC100V power source, use C10-TR transformer (sold separately). |
