Máy cấp phôi tự động (Part Feeder)
Xuất sứ: Japan
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: SINFONIA VIET NAM

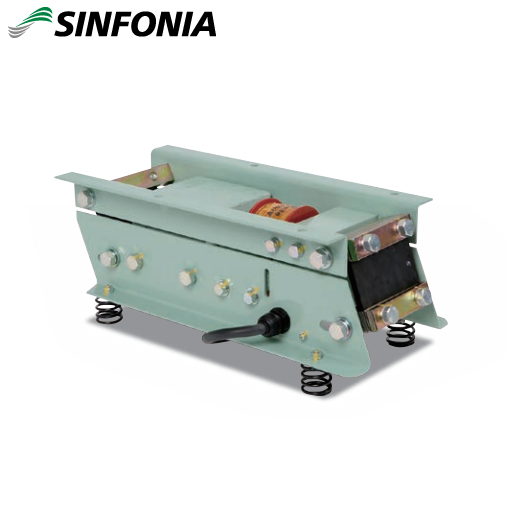

Mr. HuyLINEAR FEEDERS/ Coil-spring Vibro-isolating type
Model: LF-30
For stable feeding of large volumes of large workpieces
Features
• Large size feeder provides smooth workpiece delivery
Large, vibro-isolating feeder that keeps the flow of workpieces smooth through adjustment of leaf-spring angle.
• Fast, stable delivery of high volumes of large workpieces
Extremely high conveyance efficiency allows high-volume delivery of large workpieces.
• Dial control for free adjustment of conveyance speed
By changing the vibration frequency and amplitude with the dial control, delivery speed can be freely adjusted.
Specifications
| Model | Leaf-spring adjustment angle |
Rated Voltage (V) |
Rated Current (A) |
Vibration Frequency (Hz) |
Weight (kg) |
Cross section area of power cable (mm2) |
Standard Compatible controller |
|
| α | β | |||||||
| LF-30 | 0゜〜20゜ | 10゜〜30゜ | 200/220 | 1.5 | 50〜90 | 23 | 1.25×3 cores | C10-3VF/3VFEF |
| LF-40 | 0゜〜20゜ | 10゜〜30゜ | 200/220 | 1.6 | 50〜90 | 29 | ||
