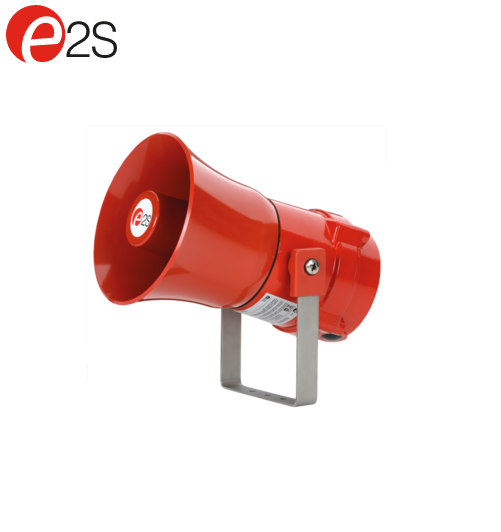

Còi báo (Explosion Proof Alarm Horn Sounder)
Xuất sứ: UK
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: E2S VIET NAM
Mr. BảoCòi báo (Explosion Proof Alarm Horn Sounder) – E2S
Model: BEXS110D
Specification:
|
Maximum output:
|
117dB(A) @ 1 metre [108dB(A) @ 10ft/3m]
|
|
Nominal output:
|
110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m]
|
|
No. of tones:
|
32 (UKOOA / PFEER compliant)
|
|
No. of stages:
|
3
|
|
Volume control:
|
Max. 110dB(A); Min. 72dB(A) – Tone 2
|
|
Effective range:
|
100m @ 1KHz
|
|
Voltages DC:
|
12vdc; 24vdc; 48vdc
|
|
Voltages AC:
|
115vac; 230vac
|
|
Stage switching:
|
Negative or positive
|
|
Ingress protection:
|
IP66/67
|
|
Enclosure matl:
|
Marine grade copper free LM6 Aluminium
|
|
Enclosure finish:
|
Chromate & powder coated finish – anti-corrosion.
|
|
Colour:
|
RAL3000 Red
Grey RAL7038 Special – available on request |
|
BExS110 horn:
|
High impact UL94 V0 & 5VA FR ABS (Red)
|
|
Cable entries:
|
Dual M20 ISO
(one stopping plug inc) |
|
Terminals:
|
0.5 – 2.5mm² (20-14 AWG)
|
|
Enclosure volume:
|
<2 litres
|
|
Line monitoring:
|
Blocking diode included
EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
|
Grounding stud:
|
M5
|
|
Temperature range:
|
-50° to +70°C (-58°F to +158°F)
|
|
Relative humidity:
|
95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
|
|
Weight:
|
DC: 3.00kg AC: 3.20kg
|
|
Option M1:
|
MED (Marine Equipment Directive) approved, 24V dc only
|
|
Option P1:
|
Stage programmable – 4 remotely selectable stages
45 alarm tones – any tone can be assigned to any stage<. User configurable continuous frequency tone |
|
Option S1/J1:
|
SIL2 certified – contact E2S for information
|
|
Option T1:
|
Tropicalised version
|
|
*SPL data +/-3dB(A). Measured at optimum voltage.
|
|
