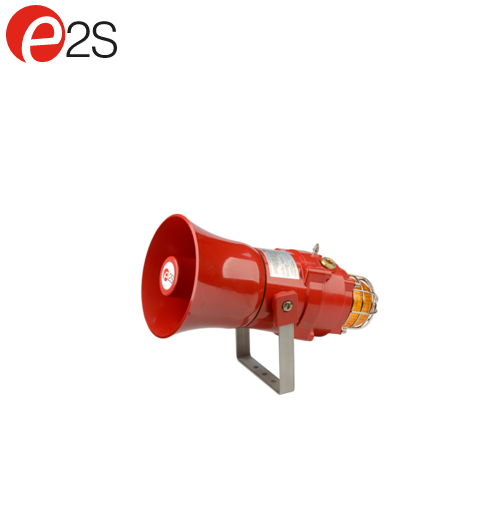

Thiết bị báo động (đèn+còi) (Explosion Proof Alarm Horn & Xenon Strobe)
Xuất sứ: UK
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: E2S VIET NAM
Mr. BảoThiết bị báo động (đèn+còi) (Explosion Proof Alarm Horn & Xenon Strobe) – E2S
Model: BEXCS110-05D
Specification:
| Alarm Horn Sounder: | |
| Maximum output: | 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m] |
| Nominal output: | 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 110dB(A); Min. 72dB(A) – Tone 2 |
| Effective range: | 100m/328ft @ 1KHz |
| Voltages DC: | 12vdc; 24vdc; 48vdc |
| Voltages AC: | 115vac; 230vac |
| Stage switching: | Negative or positive |
| Beacon: | |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd – calculated from energy (J) |
| Eff. Intensity: | 250 cd – calculated from energy (J) |
| Peak Candela: | 39,463 cd* – measured ref. to I.E.S. |
| Eff. Intensity: | 120 cd* – measured ref. to I.E.S. |
| Lens colours: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Tube life : | Emissions are reduced to 70% after 5 million flashes |
| General: | |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated |
| Horn material: | High impact UL94 V0 & 5VA FR ABS (Red) |
| Cable entries: | Dual M20 ISO (one stopping plug included) |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| Temperature range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist |
| Weight: | DC: 4.80kg/10.56Ibs AC: 5.00kg/11Ibs |
|
SPL data +/-3dB(A), Candela with clear lens – at optimum voltage
|
|
