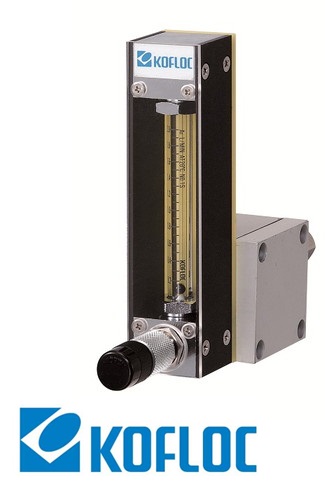

Mr. Huy2504FR Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang
| Fluids | Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas) For other gases, please consult us regarding conversion conditions or calibration with the actual gas to be used. * Option: Scales for two types of fluids |
|
| Flow range (FS) | From 1–10 ML/MIN to 1–10 L/MIN (Refer to the Capacity Table on page 55.) | |
| Accuracy | FS ±2% (Measurement point) The flow fluctuation is within FS ±2% when the inlet pressure changes to 0.07–0.7 MPa under the flow meter outlet pressure condition. |
|
| Control pressure | The pressure difference between inlet and outlet must be 0.07 MPa or more. | |
| Proof pressure | 5L/MIN or less : 0.7MPa 10 L/MIN or more: 0.5 Mpa |
|
| Available scale | 10:1 | |
| Material | SS | Al |
| Body block | SUS316 | Al, Brass |
| Tapered tube | Pyrex , glass | |
| Packing | FKM | NBR |
| Float | Pyrex, SUS316, glass | |
| Protective cover | Acrylic resin | |
| Heat resistance | MAX60℃ | |
| Connection | Rc 1/4 (Standard), Rc 1/8 (Optional) | |
