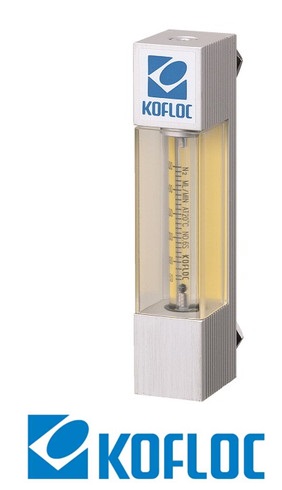

RK1100 Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang

Fluids Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas)
For other gases, please consult us regarding conversion conditions
or calibration with the actual gas to be used.
Flow range (FS) RK1100 10ML/MIN-20L/MIN
RK1100PV
RK1100V 1L/MIN-20L/MIN
Accuracy FS ±2% (Measurement point) * Option: FS ±1% (Measurement point)
Proof pressure 0.5MPa
Available scale 10:1 * Option 20:1


Material S Al
Body block SUS303 · 304 Al
Tapered tube Pyrex®, glass
Packing FKM NBR
Float Pyrex®, SUS316, glass
Protective cover Acrylic resin
Heat resistance MAX60℃
Connection Rc 1/4 (Standard), Rc 1/8 (Optional)
