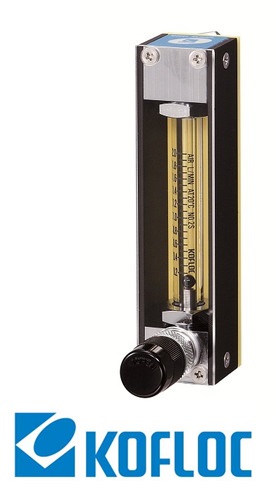

RK1600R Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang

Fluids Air, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas)
For other gases, consultation is necessary regarding whether
conversion conditions or calibration by actual gas is to be used.
Flow range (Full scale) 1L, 2L, 3L, 5L, 10L, 15L, 20L/MIN
Accuracy FS±5% (Measurement point)
Proof pressure 0.8 MPa for 5 L/MIN or less
0.5 MPa for 10 L/MIN or more
Available scale 10:1


Materials S BS
Body block and some other components SUS303, SUS304 Brass
Tapered tube Pyrex®, glass
Packing FKM NBR
Float Pyrex, SUS316, glass
Protective cover Acrylic resin
(Temperature resistance) MAX60℃
Connection Rc1/8 (Standard); Rc1/4 (Optional)
