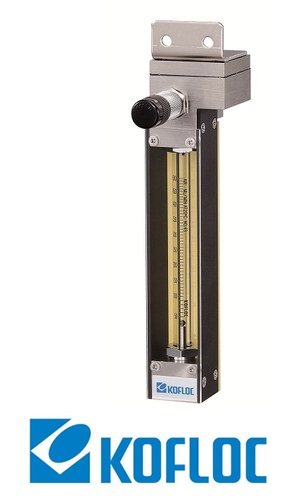

Mr. Bảo2503F Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang
| Fluids | Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas) For other gases, please consult us regarding conversion conditions or calibration with the actual gas to be used. |
|
| Flow range (FS) | RK1100 | 10ML/MIN-20L/MIN |
| RK1100PV | ||
| RK1100V | 1L/MIN-20L/MIN | |
| Accuracy | FS ±2% (Measurement point) * Option: FS ±1% (Measurement point) | |
| Proof pressure | 0.5MPa | |
| Available scale | 10:1 * Option 20:1 | |
| Material | S | Al |
| Body block | SUS303 · 304 | Al |
| Tapered tube | Pyrex®, glass | |
| Packing | FKM | NBR |
| Float | Pyrex®, SUS316, glass | |
| Protective cover | Acrylic resin | |
| Heat resistance | MAX60℃ | |
| Connection | Rc 1/4 (Standard), Rc 1/8 (Optional) | |
