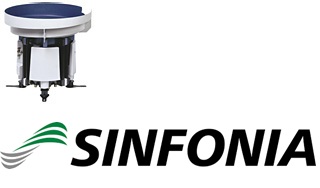

DM Series
Smooth, low-noise conveyance

• Setting vertical amplitude at the lowest possible setting greatly reduces bouncing of workpieces. Thin, flat workpieces remain separate and are conveyed smoothly.

• Work is conveyed as though gliding, with minimal impact between workpieces and track, resulting in minimal noise.

Drive Unit Specifications

Model

DM-30C DM-38C DM-45C DM-65C
Drive unit outer diameter(mm) φ310 φ390 φ460 φ670
Drive unit height(mm) 290 295 365 572.5
Drive unit weight(kg) 53 81 140 312
Rated voltage(V) 200
Rated current(A) Horizontal 2.0 2.0 4.0 4.0
Vertical 0.8 0.8 2.0 2.0
Vibration frequency(Hz) 70〜110 30〜40
Unprocessed bowl diameter (mm)
(cylindrical)
φ300 φ375 φ450 φ650
Max. bowl diameter (mm)
(cylindrical)
φ500 φ600 φ700 φ1000
Max. loaded weight(kg) 9.2 17.0 27.5 70.0
Max. amplitude(mm)
(Unprocessed cylindrical bowl periphery)
Horizontal 1.8 2.0 4.0
Vertical 0.3 1.0
Cross section area of power cable(mm2) 0.75×5cores
Applicable controller C10-4DM
Dimensions
DM30C~45C

Dimensions Chart

Unit:mm

Model

H φA B M φD φd t φF
DM-30C 285~290~295 310 290 M12 270 10 8 252
DM-38C 290~295~300 390 370 M16 320 10 8 324
DM-45C 360~365~370 460 440 M16 365 12 10 390
Dimensions
DM-65C

  •
