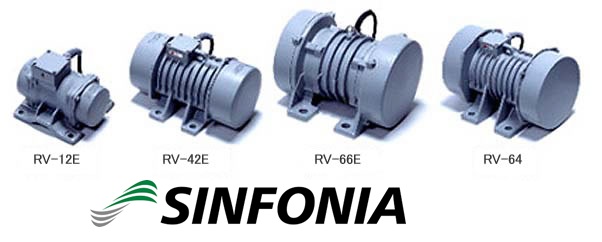

RV Series Small Vibrating Equipment Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: SINFONIA VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm
■Specifications:RV Series Vibrating Motors (Two Poles)
(Continuous rating, 3-phase, 200/220V, 400/440V, 50/60Hz)
Mode Excitation
force
(kgf)		 Output
(kW)		 Current (A) Weight
(kg)
200V/50Hz 220V/60Hz
　RV-042 50 0.04 0.25 0.23 5.0
　RV-072D 100 0.075 0.44 0.40 7
　RV-12E 200 0.15 0.75 0.67 11
　RV-22D 350 0.25 1.3 1.2 14
　RV-42E 600 0.4 1.76 1.6 24
　RV-72E 1000 0.75 3.52 3.2 33
Notes: The standard paint color is Munsell 7.5BG6/1.5.
  Insulation class: B
  Special specifications apply for outdoor operation.
  The RV-042 is manufactured only to 200/220V specifications.
  Cable: 2PNCT, 4-core, 0.75mm2(O.D. 11mm), length 2m (green ground wire).
  •
