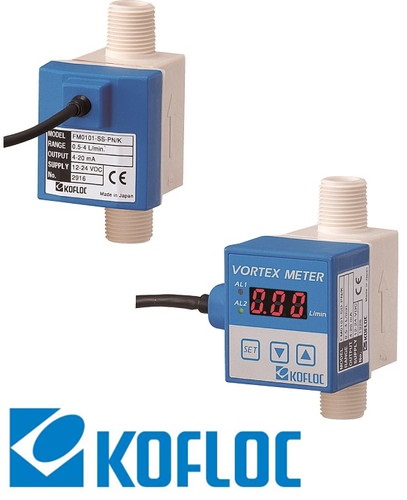

FM01 Thiết bị đo lưu lượng và điều khiển Kofloc
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: KOFLOC VIET NAM
Mr. HuyFM01 Thiết bị đo lưu lượng và điều khiển Kofloc Vietnam ANSdanang
| Model | FM0101 | FM0102 | FM0103 | FM0105 |
| Dimension (a) | 17.8 | 17.5 | 17.5 | 32.5 |
| Dimension (L) | 80.6 | 80 | 80 | 110 |
| Connection (X) | R3/8 | R1/2 | R1/2 | 25A |
| Flow range | 0.5-4 L/min | 2-16 L/min | 4-40 L/min | 10-150 L/min |
| Fluids for measurement | Cooling water, cleaning water, etc. | |||
| Measuring accuracy | Within ±3.0% F.S | |||
| Repeatability | Within ±0.5% F.S | |||
| Outputs | S Type: 4-20mA | |||
| P Type: Pulse (Open collector) (For w/o indicator only) | ||||
| D Type: With indicator | ||||
| Supply voltage | 12-24VDC | |||
| Liquid temperature range | 0-70℃ | |||
| Proof pressure | 1MPa | |||
| Amb. temperature range | 0-50℃ | |||
| Amb. humidity range | 5-90%RH | |||
| Applicable cleanliness/ waterproofing standards |
IP64 (Splashproof construction per JIS C 0920) | |||
| Material for wetted part | PPS with 30% glass mixture | PPS w/o glass mixture | ||
| Cable length | W/o indicator: 2 meters long; terminated/pretinned (presoldered) | |||
| With indicator: 3 meters long; terminated/pretinned (presoldered) | ||||
| Weight | W/o indicator: 85 g (Sensor unit) | 165 g (Sensor unit) | ||
| With indicator: 100 g (Sensor unit) | 205 g (Sensor unit) | |||
