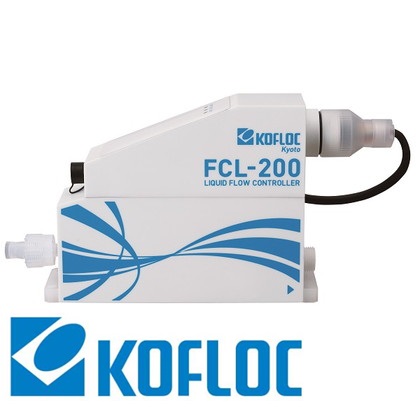

FCL-200 Thiết bị đo lưu lượng và điều

・Applicable fluid Water, pure water, ultrapure water (For other fluids, please contact us.)
・Flow range 0.4 - 2.0 L/min (Operating differential pressure 150 kPa min.)
・Allowable fluid temperature 10 - 35℃ (normal temperature) (Optional: 10 - 80℃)
・Measurement accuracy ±1%FS (at 25℃, pure water calibration)
・Repeatability ±0.7%FS (at 25℃, pure water calibration)
・Response Valve close → 100%F.S.: 2 sec. max., 100%F.S .→ valve close: 2 sec. max.
    (at 25℃, pure water, differential pressure = 150 kPa)
・Materials of areas in contact
      with liquid
PTFE、PFA
・Supply pressure 0.15 - 0.35 MPa (Pump pulsation ±50 kPa max.)
・Proof pressure 0.6 MPa (at 25℃)
・Process connection 3/8 inch (φ9.52×6.35) SUPER 300 P type joint made
        by NIPPON PILLAR PACKING
・Dedicated power cable leng 3 m
・Cable sheath PVC
・Structure Equivalent to IP64 (Electrical part)
・Valve structure Normally open
・Ambient temperature 0 - 50℃ (no condensation)
・Ambient humidity 10 - 85%RH (no condensation)
・Installation posture Free (Horizontal installation recommended)
・Weight Approx. 1.3 kg
