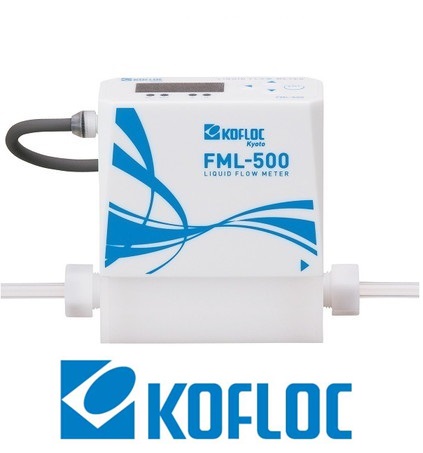

FML-500 Thiết bị đo lưu lượng và điều khiển Kofloc
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: KOFLOC VIET NAM
Mr. Bảo6801 Van điều áp Kofloc Vietnam ANSdanang
| Applicable liquids | Water, purified water (no bubbles) *Please contact us for other liquids. |
||
| Fluid sonic velocity | 1300 m/s to 1600 m/s | ||
| Fluid temperature range | 15 to 50℃ | ||
| Measurement range | 0 to 5 L/min | ||
| Accuracy | Refer to Table 1. | ||
| Material in contact with liquid | New PFA | ||
| Proof pressure | 0.5 MPa (at 23℃) | ||
| Process connection | 6 mm tube end | ||
| Dedicated cable length | 3 m | ||
| Cable sheath | PVC | ||
| Structure | IP64 or equivalent | ||
| Ambient temperature | 5 to 50℃ (no condensation allowed) | ||
| Ambient humidity | 10 to max. 85% RH (no condensation allowed) | ||
| Mounting position | Vertical, horizontal, diagonal | ||
| Weight | 200 g (main unit) | ||
