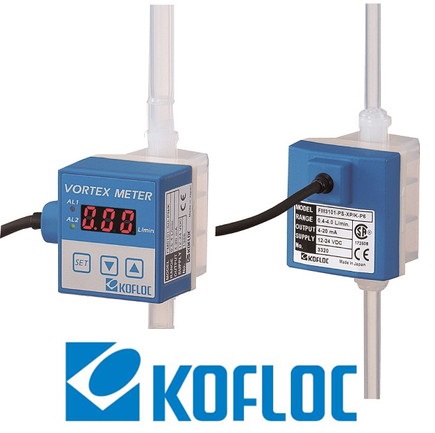

FM31 Thiết bị đo lưu lượng và điều khiển Kofloc Vietnam ANSdanang

Item FM3101 FM3102 FM3103 FM3104
Flow range (L/min) 0.4-4 2-20 5-50 10-100
Connection 3/8”
Pipe end
1/2”
Pipe end
3/4”
Pipe end
1”
Pipe end
Fluids for measurement Ultrapure water, chemicals, and other liquids
Measuring accuracy ±3.0%+ 1 digit
Repeatability Within ±0.5% F.S.
Liquid temperature range 0-90℃ (No bedewing, no boiling)
Amb. temperature range 0-50℃
Outputs With indicator LED display in 3 digits
Current output: 4-20 mA (linear)
Alarm output: Open collector (2 LEDs; 80 mA, 30 VDC max.)
W/o indicator Current output: 4-20 mA (linear)
Pulse output: Open collector (10 mA, 30 VDC max.)
Supply voltage 12-24VDC
Materials Body All Teflon® (PFA), without O-rings
Cover Polybutylene terephthalate (PBT) resin
Cable 2 meters long; Conductor: Tinned bare annealed copper wire;
Sheath: Heat-/cold-resistant polyvinyl chloride (POC)
