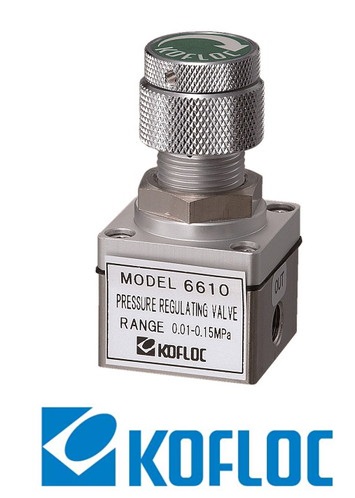

6610 Van điều áp Kofloc Vietnam ANSdanang



Fluids Various gases
Maximum primary pressure 0.4MPa
Secondary control pressure 0.01-0.15MPa
Maximum flow 5L/MIN
Minimum operating differential pressure 0.1 MPa or more
Materials of parts in contact with gases SUS316, FKM, fluorocarbon resin, SUS304,
SUS303
Proof pressure 0.8MPa
Repeatability Within ±1% of the pressure rating
Heat resistance 5℃-60℃
Connection end Rc1/8
Materials of parts in contact with fluids SUS316, FKM, fluorocarbon resin, SUS304,
SUS303
