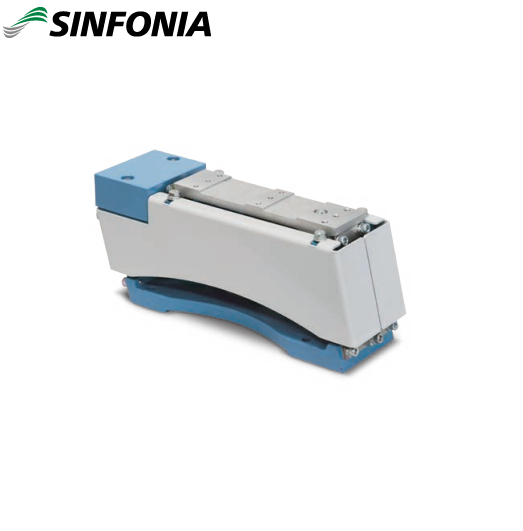

Máy cấp phôi tự động thẳng (Linear Feeder)

Low-reaction force linear feeder with less floor reaction

Model: LFBR-350B

Specifications

Model LFBR-350B LFBR-450B LFBR-600B
Rated Voltage (V) 200
Rated Current (A) 0.12 0.14 0.2
Vibration Frequency (Hz) 95〜120 75〜100 75〜90
Drive unit weight (kg) 3.5 5.5 10.5
Leaf-spring angle (degree) 12 15 15
Max. amplitude (mm) 0.60 0.65 0.75
Cross section area of power cable (mm2) 0.75×3 cores
Compatible controller AC200V C10-1VF/C10-1VFEF
AC100V C10-1VF+C10-TR/C10-1VFEF+C10-TR
