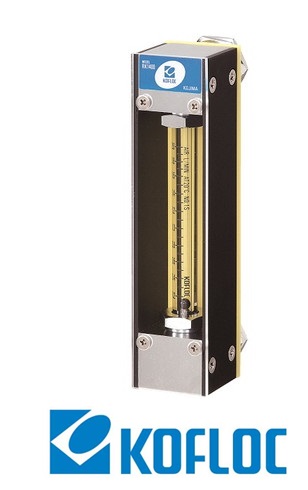

RK1400 Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang



  Gases Liquids
Fluids Air, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas)
For other gases, consultation is necessary regarding
whether conversion conditions or calibration by actual gas is to be used.
* Optional: Scale indicating two types of fluids
Standard fluid: Water
For other liquids, consultation is necessary regarding whether conversion conditions or calibration by actual liquid is to be used.
Flow range 0.5-5 ML/MIN to 10-100 L/MIN (See the Capacity Table below.)
Optional: 0.5-3 ML/MIN
0.5-5 ML/MIN to 0.3-3 L/MIN (See the Capacity Table below.)
* Optional: 0.5-3 ML/MIN
Accuracy FS±2% (Measurement point)
* Optional: FS±1% (Measurement point)
FS±2% (Measurement point)
Proof pressure 1.0 MPa for 100 ML/MIN or less
0.7 MPa for 5 L/MIN or less
0.5 MPa for 10 L/MIN or more
1.0 MPa for 5 ML/MIN or less
0.7 MPa for 150 ML/MIN or less
0.5 MPa for 200 ML/MIN or more
Available scale 10:1 * Optional: 20:1


Materials SS BS*
Body block SUS316, SUS304 Brass
Tapered tube Pyrex®, glass
Packing FKM NBR
Float Pyrex, SUS 316, SUS 304 or SUS 303 (for measurement of H2O in the flow range of 2-3 L/MIN only), glass
Protective cover Acrylic resin
Temperature
 resistance
MAX60℃
Connection end Rc1/4 (Standard); Rc1/8 (Optional)
