b maXX 3300 bộ điều khiển Baumulle

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: BAUMULLER VIET NAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

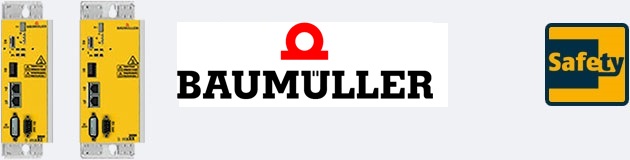

b maXX 3300 bộ điều khiển Baumulle Vietnam ANSdanang

Technical data b maXX 3300

metric / imperial
  Frame size IN [A] IMAX[A] typ. motor power [kW] max. peak current time [s] Dimensions WxHxD [mm]

BM 3302 0 1.5 6 0.8 60 65 x 170 x 170
BM 3303 0 2.7 11 1.4 60 65 x 170 x 170
BM 3304 0 5 15 2.5 30 65 x 170 x 170
BM 3312 1 6.5 20 3.3 10 85 x 170 x 170
BM 3313 1 10 20 5 10 85 x 170 x 170

Mains supply voltage: frame size 0: 110 - 243 V, single-phase; supply rated voltage: 230 V
frame size 0/1: 180 - 528 V, three-phase; supply rated voltage: 400 V
Supply frequency: 50/60 Hz
Chopping frequency: 4/8/16 kHz
Output voltage: 0-85% (single-phase), 0-95% (three-phase) of supply voltage
Electronics supply: external 24 V DC

Data is valid for 4 kHz clock frequency
Dimensions without mounting brackets
