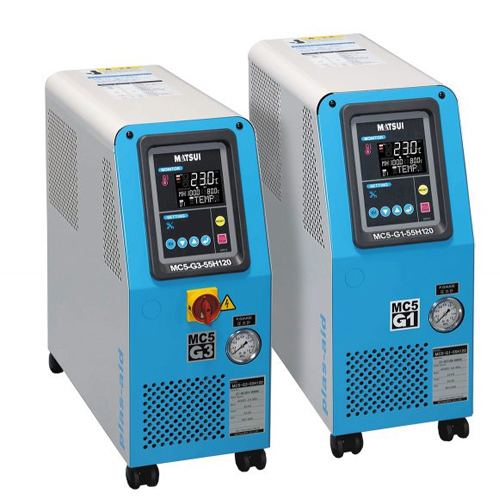

Matsui Vietnam,Bộ điều khiển nhiệt độ khuôn MC5-G3-200L95 Matsui

Model			Unit	MC5-G3/G1-L95			MC5-G3/G1-H120
				MC5-G3-25L95	MC5-G3-55L95	MC5-G3-88L95	MC5-G3-25H120	MC5-G3-55H120	MC5-G3-88H120
				MC5-G1-25L95	MC5-G1-55L95	MC5-G1-88L95	MC5-G1-25H120	MC5-G1-55H120	MC5-G1-88H120
Power Supply	Voltage		V	AC200/380V, 50/60Hz, 3 Phase
	Apparent Power		kVA	5.5/6.2	8.0/8.6	11.8/12.6	5.5/6.2	8.0/8.6	11.8/12.6
	Breaker Capacity		A	20/15	30/15	40/30	20/15	30/15	40/30
Water Supply	Flow Rate		L/min	5.0~9.0	7.0~11.0	9.0~14.0	9.0~11.0	10.0~12.0	12.0~15.0
Water Supply	Pressure		MPa	0.1~0.3			0.2~0.3
Medium				Clean Water (Soft Water)
Operating Temperature Range			°C	Water Supply Temperature +10 ~ 95			Water Supply Temperature +10 ~ 120
Heater Capacity			kW	4	6	9	4	6	9
Pump	Maximum Flow Rate	50Hz	L/min	35	55	90	35	55	90
	Maximum Flow Rate	60Hz	L/min	45	65	100	45	65	100
	Output		kW	0.3	0.6	1	0.3	0.6	1
Cooling Method				Direct Cooling
Piping	Water Supply / Drain Port			Ø 10.5 Hose Nipple(3/8B)
Piping	Medium Feed / Return Port			3/8Bx2 Ball valve	3/8Bx4 Ball valve	3/8Bx6 Ball valve	3/8Bx2 Ball valve	3/8Bx4 Ball valve	3/8Bx6 Ball valve
Outer Dimension		W	mm	233
		D	mm	648	697	757	658	703	763
		H	mm	524	564	674	524	564	674
Product Weight			kg	40	50	60	40	50	60

Model			Unit	MC5-G3/G1-L95			MC5-G3/G1-H130
				MC5-G3-200L95	MC5-G3-350L95	MC5-G3-450L95	MC5-G3-200H130	MC5-G3-350H130	MC5-G3-450H130
				MC5-G1-200L95	MC5-G1-350L95	MC5-G1-450L95	MC5-G1-200H130	MC5-G1-350H130	MC5-G1-450H130
Power Supply	Voltage		V	AC200/380V, 50/60Hz, 3 Phase
	Apparent Power		kVA	16.0/16.5	20.8/21.2		16.0/16.5	20.8/21.2
	Breaker Capacity		A	60/30	75/40		60/30	75/40
Water Supply	Flow Rate		L/min	25.0~42.0			19.0~22.0
Water Supply	Pressure		MPa	0.1~0.3			0.3~0.4
Medium				Clean Water (Soft Water)
Operating Temperature Range			°C	Water Supply Temperature +10 ~ 95			Water Supply Temperature +10 ~ 130
Heater Capacity			kW	12	14		12	14
Pump	Maximum Flow Rate	50Hz	L/min	200	250	450	200	250	450
	Maximum Flow Rate	60Hz	L/min	200	350	450	200	350	450
	Output		kW	2.2	3.7		2.2	3.7
Cooling Method				Direct Cooling
Piping	Water Supply / Drain Port			Ø 14 Hose Nipple(1/2B)
Piping	Medium Feed / Return Port			Rc11/4B (32A)	Rc11/2B (40A)		Rc11/4B (32A)	Rc11/2B (40A)
Outer Dimension		W	mm	303
		D	mm	680
		H	mm	678
Product Weight			kg	Approx. 105	Approx. 110		Approx. 105	Approx. 110

Model			Unit	MC5-G3-HH160			MC5-G3-HH180
				MC5-G3-55HH160	MC5-G3-88HH160	MC5-G3-100HH160	MC5-G3-55HH180	MC5-G3-88HH180	MC5-G3-100HH180
				MC5-G1-55HH160	MC5-G1-88HH160	MC5-G1-100HH160	MC5-G1-55HH180	MC5-G1-88HH180	MC5-G1-100HH180
Power Supply	Voltage		V	AC200/380V, 50/60Hz, 3 Phase
	Apparent Power		kVA	11.3/12.1	14.8/15.6	17.7/18.6	11.3/12.1	14.8/15.6	17.7/18.6
	Breaker Capacity		A	40/30	50/30	63/40	40/30	50/30	63/40
Water Supply	Flow Rate		L/min	15~
Water Supply	Pressure		MPa	0.2~0.6
Medium				Clean Water (Soft Water)
Operating Temperature Range			°C	Water Supply Temperature +20 ~ 160			Water Supply Temperature +20 ~ 180
Heater Capacity			kW	9	12	14	9	12	14
Pump	Maximum Flow Rate	50Hz	L/min	53	73	80	53	73	80
	Maximum Flow Rate	60Hz	L/min	60	75	85	60	75	85
	Output	50/60Hz	kW	1.0/1.1	1.5	2.2	1.0/1.1	1.5	2.2
Booster Pump	Output		kW	0.07
Cooling Method				Indirect Cooling
Piping	Water Supply / Drain Port			Ø 10.5 Hose Nipple(3/8B)
Piping	Medium Feed / Return Port			3/8Bx4 Ball valve	3/8Bx4 Ball valve	3/8Bx6 Ball valve	3/8Bx4 Ball valve	3/8Bx4 Ball valve	3/8Bx6 Ball valve
Outer Dimension		W	mm	233		253	233		253
		D	mm	640
		H	mm	643	683	733	643	683	733
Product Weight			kg	70	85	100	70	85	100

100% Japan/ China Vietnam Origin	Matsui Vietnam	Type: MC5-G3-200L95 Mold Temperature Controller Heater : 12 kW Operational temperature : Supply water + 10℃- 95℃ Pump : 2.2 kW Water supply : 0.1～0.3 Mpa <Option> Flow Rate Monitor 3 Colars Laminated Lamp (Red,Yellow,Blue)
100% Japan/ China Vietnam Origin	Matsui Vietnam	Type: MJ3-200A Dehumidifying Dryer Hopper Capacity : 350L(About 200kg) Drying Temperature : 80-160℃ Dew Point : -40℃ Heater : 9.1kw Blower Flow Rate : 280m3/h Suction hopper : JC-18 x 1 Second side hopper : APH-9 x 1 ＜Options＞ Cyclone Separator Chute with Drain 3 Colars Laminated Lamp (Red,Yellow,Blue)
