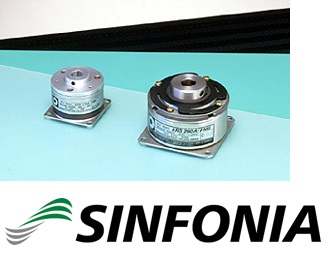

ERS-260L/FMF Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

ERS-260L/FMF Brake Sinfonia Vietnam ANSdanang

<ERS-260L/FMF>
Type ERS-260L/FMF
Static friction torque Nm 8
Rated voltage DC-V 24
Power consumption W(at75°C) 10
Weight kg 0.51
Unit:mm





Diameter direction
A 66.2
A1 30
C 67
C1 35
D 88.87
I 67
Shaft direction
L 46.4
M 25
N 2.5
P 14.5
Q 31.4
g
0.4 +0.1
0
Mounting
K 6
KJ M5
NJ P.C.D 79.4
Bolt 4.5
Shaft hole
d 12
b 3
t 13
