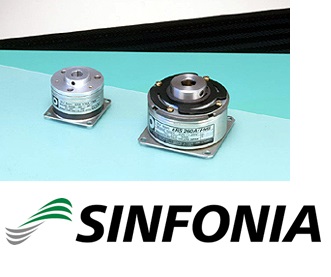

ERS-260A/FMS Brake Sinfonia Vietnam ANSdanang

<ERS-260A/FMS>
Type ERS-260A/FMS
Static friction torque Nm 7
Rated voltage DC-V 24
Power consumption W(at75°C) 10
Weight kg 0.70
Unit:mm





Diameter direction
A 68
A1 30.1
C 67
C1 25
D 88.87
I 67
Shaft direction
L 50
M 31
N 1.6
P 20
Q 30
Mounting
K 4.4
KJ M5
NJ P.C.D 79.4
Bolt M4×12
Shaft hole
d 12
b 3
t 13
