Airwave Technology

Airwave Switches & Sensing Edges

The pressure wave system, due to its high sensitivity, is able to detect contact from people or vehicles approaching from almost any angle and a low activation force reliably switches the electrical contact. Due to it””s simple design, the system is extremely robust and reliableeven under tough environmental conditions. Bircher Reglomat””s pressure wave systems are a proven solution for a variety of applications. The systems are maintenance free and offer excellent cost-performance ratio.

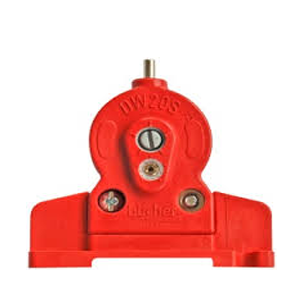

The D1 series switches (including DW40 and DW20s), Bircher Reglomat””s best-selling pressure wave switches utilize proven technology with millions of units in use for countless applications worldwide. The fixed orifice equalizes for atmospheric and/or temperature changes and allows for reliable operation regardless of environmental conditions.

Applications by Industry

  • Aircraft
  • Barrier gates
  • Carwashes
  • Clean rooms
  • Cold storage doors
  • Gates
  • Hangar doors
  • Industrial lifts
  • Material handling
  • Medical/veterinary equipment
  • Public transit
  • Spacecraft
  • Stop switches
  • Warehouse doors
  • Whirlpools/hot tubs
  • Vehicle Doors



210973 ES-CC Eckverbinder zu RampSch Corner connector for ramp rail
210975 ES-CS-1150 Verb.Streifen BKT-2307 115… Connection strip for mats 1150mm
210976 ES-CS-1550 Verb.-Streifen BKT-2307 15… Connection strip for mats 1550mm
211005 ES-EC-10 Verlängerungskabel L=10m Extension cable 10m
211006 ES-EC-5 Verlängerungskabel L=5m Extension cable 5m
211708 ESM-52D-1000X1000 KonMat 2 Kabel Standard dimension mat 1000 x 1000
211710 ESM-52D-1200X1000 KonMat 2 Kabel Standard dimension mat 1200 x 1000
211711 ESM-52D-1200X1250 KonMat 2 Kabel Standard dimension mat 1200 x 1250
211712 ESM-52D-1200X500 KonMat 2 Kabel Standard dimension mat 1200 x 500
211713 ESM-52D-1200X750 KonMat 2 Kabel Standard dimension mat 1200 x 750
211714 ESM-52D-1600X1000 KonMat 2 Kabel Standard dimension mat 1600 x 1000
211715 ESM-52D-1600X500 KonMat 2 Kabel Standard dimension mat 1600 x 500
211716 ESM-52D-1600X750 KonMat 2 Kabel Standard dimension mat 1600 x 1000
211723 ES-MK Befestigungsset zu RampSch ES-RR Fastening set 10 screws, 10 dowel
211968 ES-RC Steckverbinder zu RampSch Straight connector for ramp rail
211969 ES-RE-8K2 AbschlussWiderst ,8,2KOhm,S… Terminal resistor 8.2kOhm, set of 3 pieces
211971 ES-RR-1000 RampSch L=990mm Ramp rail for mat 1000mm
211972 ES-RR-1200 RampSch L=1190mm Ramp rail for mat 1200mm
211973 ES-RR-1250 RampSch L=1240mm Ramp rail for mat 1250mm
211974 ES-RR-1600 RampSch L=1590mm Ramp rail for mat 1600mm
211975 ES-RR-500 RampSch L=490mm Ramp rail for mat 500mm
211994 ES-RR-750 RampSch L=740mm Ramp rail for mat 750mm
212015 ES-ZT-1000 Z-Schiene L=1000mm Fixing rail for mat 1000mm
212016 ES-ZT-1200 Z-Schiene L=1200mm Fixing rail for mat 1200mm
212017 ES-ZT-1250 Z-Schiene L=1250mm Fixing rail for mat 1250mm
212018 ES-ZT-1600 Z-Schiene L=1600mm Fixing rail for mat 1600mm
212019 ES-ZT-500 Z-Schiene L=500mm Fixing rail for mat 500mm
212021 ES-ZT-750 Z-Schiene L=750mm Fixing rail for mat 750mm
ESM-54 ESM-54D / ESM-54G Length and width as per customer specification (price on inquiry)
ESM-57 ESM-57 Custimized version (price on inquiry)
210884 ESAS25-230AC Switching unit, 1 channel, safety category 2, 230V, in installation housing
211838 ESR25-24ACDC Switching unit, 1 channel, safety category 2, 24V, in 11pin-housing
211845 ESR26-24ACDC Switching unit, 2 channels, safety category 2, 24V, in 11pin-housing
263912 EsGate 2.LVAC Switching unit, 2 channels, safety category 2, 24V, for DIN-rail-mounting
263914 EsGate 3.LVAC Switching unit, 2 channels, safety category 3, 24V, for DIN-rail-mounting
210979 ESD3-03-24ACDC SichSchGer,autoRes 24ACDC Safety device, performance level e, kat. 3, auto reset
210985 ESD3-04-24ACDC SichSchGer,autoRes 24ACDC Safety device, performance level e, kat. 3, auto reset
210988 ESD3-05-24ACDC SichSchGer,extRes 24ACDC Safety device, performance level e, kat. 3, ext. reset
210994 ESD3-06-24ACDC SichSchGer,extRes 24ACDC Safety device, performance level e, kat. 3, ext reset
210997 ESD3-08-24ACDC SichSchGer,autoRes 24ACDC Safety device, performance level e, kat. 3, auto reset
211000 ESD3-09-24ACDC SichSchGer,extRes 24ACDC Safety device, performance level e, kat. 3, ext reset
299769 RFGate 2.1.F Wireless signal transmission system for safety edges, safety category 2, transmitter and receiver
299851 RFGate  2.1.S.F Transmitter to wireless signal transmission system for safety edges
306921 RFGate 2.2.F.A Wireless signal transmission system for safety edges, safety category 2, two transmitters and one 2-channel-receiver
210064 DW50 Druckwellenschalter DW50 Pressure Wave Switch DW50 NO
259669 DWGK50 DW50 in housing NO
212868 GEHDWGK50 Gehäuse zu DW50 empty housing DW50 w/o PG, tube
259652 PG-11W PG for GEHDWGK50 und DWGK50
302424 GEHDWGK50 completely empty housing DW50 complete
210018 DW40 DW-Schalter DW40 pressure wave switch DW40 NO
210019 DW40AMP DW-Schalter DW40 AMP pressure wave switch DW40 NO AMP
210020 DW40D DW-Schalter DW40 dicht pressure wave swich DW40 tight NO
210025 DW40DOE DW-Schalter DW40 DÖ pressure wave switch DW40 NC
210026 DW40DOEAMP DW-Schalter DW40 DÖ AMP pressure wave switch DW40 NC AMP
210061 DW40OPL DW-Sch DW40 ohne Halterung pressure wave switch DW40 NO w/o mounting plate
210062 DW40SINT2 DW-Sch DW40 35-50ml/min 2mbar pressure wave switch DW40 NO
210063 DW40SINT2AMP DW-Sch DW40AMP 35-50ml/min pressure wave switch DW40 NO
210032 DW40-HALTERUNG Halterung zu DW40 Mounting plate DW40
210095 DWGK1 DW-Schalter DWGK1 DW40 in housing NO
210096 DWGK11 DW40 in Gehäuse DW40 in housing NO
