General Specifications

Functionpressure control valvesMediagaseous, liquid, highly viscous, contaminatedBody Materialsbrass, aluminium, stainless steel, galvanized steel
The materials refer to parts in contact with the media.Seal MaterialsNBR, PTFE, FPM, EPDM, PU, HNBR, special seal materialsOptionsSAE connection, safety valve, mounting, special voltage, coil M 12 x 1, two pressure regulation, pilot valveRemarkThe valves'' technical design is based on media and application requirements. This can lead to deviations from the general specifications shown on the data sheet with regards to the design, sealing materials and characteristics.

VALVE TYPES

HPB 08

HPB 08

PortsHPBthreads NPT 3/8Mediagaseous, liquidOperating Time [ms]< 200Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Power ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm

  HPB 08 Data Sheet

  General Operating Instructions

  operating instruction HPB 08

  HPB 08 Drawing

  Circuit Symbols

HPB-N 15

HPB-N 15

PortsHPBthreads NPT 1Medialiquid, highly viscous, contaminatedOperating Time [ms]< 900Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Mountingmounting holesPower ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm

  HPB-N 15 Data Sheet

  General Operating Instructions

  operating instruction HPB-N 15

  HPB-N 15 Drawing

  Circuit Symbols

HPB-S 15

HPB-S 15

PortsHPBthreads NPT 1Medialiquid, highly viscous, contaminatedOperating Time [ms]< 900Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Mountingmounting holesPower ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm

  HPB-S 15 Data Sheet

  General Operating Instructions

  operating instruction HPB-S 15

  HPB-S 15 Drawing

  Circuit Symbols

HPB-H 15

HPB-H 15

PortsHPBthreads NPT 1Medialiquid, highly viscous, contaminatedOperating Time [ms]< 900Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Mountingmounting holesPower ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm

  HPB-H 15 Data Sheet

  General Operating Instructions

  operating instruction HPB-H 15

  HPB-H 15 Drawing

  Circuit Symbols

HPB-N 32

HPB-N 32

PortsHPBthreads NPT 11/2Medialiquid, highly viscous, contaminatedOperating Time [ms]< 900Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Mountingmounting holesPower ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm

  HPB-N 32 Data Sheet

  General Operating Instructions

  operating instruction HPB-N 32

  HPB-N 32 Drawing

  Circuit Symbols

HPB-S 32

HPB-S 32

PortsHPBthreads NPT 11/2Medialiquid, highly viscous, contaminatedOperating Time [ms]< 900Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Mountingmounting holesPower ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm-S 32 Data Sheet

  General Operating Instructions

  operating instruction HPB-S 32

  HPB-S 32 Drawing

  Circuit Symbols

HPB-H 32

HPB-H 32

PortsHPBthreads NPT 11/2Medialiquid, highly viscous, contaminatedOperating Time [ms]< 900Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Mountingmounting holesPower ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm

  HPB-H 32 Data Sheet

  General Operating Instructions

  operating instruction HPB-H 32

PB-H 32 Drawing

  Circuit Symbols

HPB-S 50

HPB-S 50

PortsHPBthreads NPT 11/2Mediaemulsions, oilsOperating Time [ms]< 900Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Mountingmounting holesPower ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm

  HPB-S 50 Data Sheet

  General Operating Instructions

  operating instruction HPB-S 50

  Circuit Symbols

HPB 65

HPB 65

PortsHPBflanges PN 64Medialiquid, highly viscous, contaminatedOperating Time [ms]< 400Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Power ConsumptionDC4,8 W, AC pick up 11,0 VA holding 8,5 VAEnergized Duty RatingED100%Connectionplug acc. DIN EN 175301-803 form BAdditional Equipmentilluminated plug with varistorOptionalM12x1connector acc. DESINACoil3 positions x 90°, wire diameter 6-8 mm

  HPB 65 Data Sheet

  General Operating Instructions

  operating instruction HPB 65

  HPB 65 Drawing

  Circuit Symbols

SPB 08

SPB 08

PortsSPBthreads NPT 3/8Mediagaseous, liquidOperating Time [ms]< 200Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Power ConsumptionDC < 0,7 AControl SignalsUE0-10 V (RE 10KΩ)ProtectionIP65acc. DIN 40 050Energized Duty RatingED100% (observe the connection conditions accordingly)Connectionplug with 7 contacts / wire diameter 6-8 mm

  SPB 08 Data Sheet

  General Operating Instructions

  operating instruction SPB 08

  SPB 08 Drawing

  Circuit Symbols

SPB-N 15

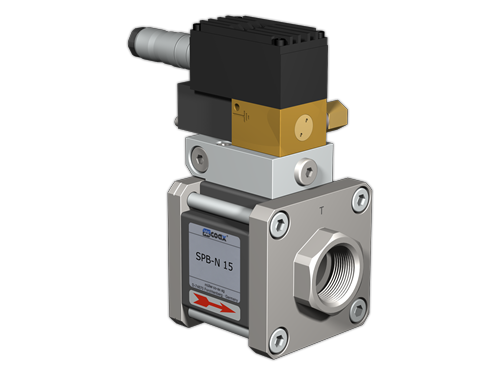

SPB-N 15

PortsSPBthreads NPT 1Medialiquid, highly viscous, contaminatedOperating Time [ms]< 900Media Temperature [°F]32 to 140Ambient Temp. [°F]32 to 122Mountingmounting holesPower ConsumptionDC < 0,7 AControl SignalsUE0-10 V (RE 100KΩ)ProtectionIP65acc. DIN 40 050Energized Duty RatingED100% (observe the connection conditions accordingly)Connectionplug with 7 contacts / wire diameter 6-8 mm
