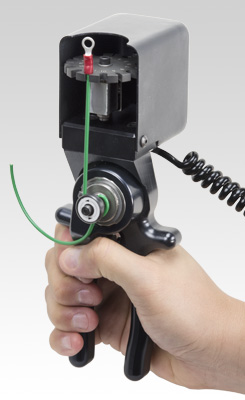

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diamaters, up to 0.25 in. (6.4 mm).

  • Member of the Plug & Test™ family of interchangeable sensors and indicators
  • Ergonomic handles and convenient tensioning mechanism
  • Measures pull forces
  • NIST-traceable certificate of calibration with data included
  • Accuracy:  ± 0.5% of full scale + indicator
  • Weight: 2.5 lb [1.2 kg]
  • Slot dimensions (in [mm]): 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]
  • Warranty: 1years
  • Model lbF ozF kgF N kN
    MR06-200 200 x 0.1 3200 x 2 100 x 0.05 1000 x 0.5 1 x 0.0005



    Capacity x Resolution
    Model lbF kgF N
    MR06-200 200 x 0.2 100 x 0.1 1000 x 1
  •
