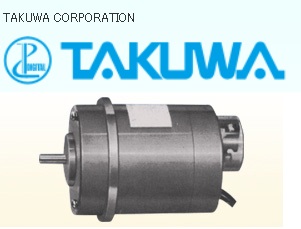

86G (Transmitter)

Product Name
86G
Product Code
BDS0140
BDS0147
Product Type
SYNCHRO TORQUE TRANSMITTER(TX)
Primary Voltage (V)
100
100
110
200
200
220
Frequency (Hz)
50
60
60
50
60
60
Primary Current (A)
0.4
0.32
0.36
0.2
0.16
0.18
Secondary Voltage (V)
78
78
86
78
78
86
Torque Gradient
(N・m/゜)
3.23×10-3
2.45×10-3
2.94×10-3
3.23×10-3
2.45×10-3
2.94×10-3
(g・cm/゜)
33
25
30
33
25
30
Temperature Rise (℃)
9
7
8
9
7
8
Stable Time (sec/175°)
Accuracy (°)
±0.5
Primary Winding
Resistance
(Ω)
Approx. 17
Approx. 67
Secondary Winding
Resistance
(Ω)
Approx. 22
Insulation Resistance
(MΩ)
10 over
High Potential Voltage
(AC.V 1min.)
1000
1500
Weight (kg)
2.3
Color
Munsell 7.5B2/2

86DG (Differential Transmitter)/86DM(Differential Receiver)



Product Name
86DG
86DM
Product Code
BDS0302
BDS0402
Product Type
SYNCHRO TORQUE
DIFFERENTIAL
TRANSMITTER(TDX)
SYNCHRO TORQUE
DIFFERNTIAL
RECEIVER(TDR)
Primary Voltage (V)
78
78
86
78
78
86
Frequency (Hz)
50
60
60
50
60
60
Primary Current (A)
0.4
0.33
0.35
0.4
0.33
0.35
Secondary Voltage (V)
78
78
86
78
78
86
Torque Gradient
(N・m/゜)
1.76×10-3
1.57×10-3
1.76×10-3
1.76×10-3
1.57×10-3
1.76×10-3
(g・cm/゜)
18
16
18
18
16
18
Temperature Rise (℃)
9
7.5
9
9
7.5
9
Stable Time (sec/175°)
3 or less
Accuracy (°)
±0.5
±1.0
Primary Winding
Resistance
(Ω)
Approx. 22
Secondary Winding
Resistance
(Ω)
Approx.26
Insulation Resistance
(MΩ)
10 over
High Potential Voltage
(AC.V 1min.)
1000
Weight (kg)
2.4
2.5
Color
Munsell 7.5B2/2

86CT (Control Transformer)



Product Name
86CT
Product Code
BDS0803
Product Type
SYNCHRO CONTROL
TRANSFORMER (CT)
Primary Voltage (V)
78
78
86
Frequency (Hz)
50
60
60
Primary Current (A)
0.018
0.016
0.017
Secondary Voltage (V)
52
52
57
Output Impedance (kΩ)
2.3
2.7
2.7
Voltage Gradient(V/°)
0.9
0.9
0.98
Minimum Voltage (mV)
150 or less
Accuracy (°)
±0.5
Angle of Phase Difference (°)
11
8
Temperature Rise (℃)
5
Primary Winding
Resistance
(Ω)
Approx. 480
Secondary Winding
Resistance
(Ω)
Approx. 260
Insulation Resistance (MΩ)
10 over
High Potential Voltage
(AC.V 1min.)
1000
Weight (kg)
2.3
Color
Munsell 7.5B2/2
