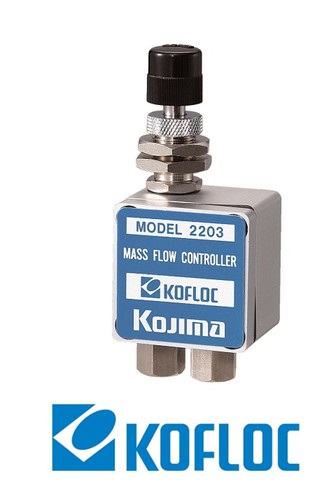

2203 Van kiểm soát lưu lượng Kofloc Vietnam ANSdanang

Rated flow ranges Gas: 10 ML/min–20 L/min
Control accuracy Change in reading within 1.0% of change in load pressure
(Inlet-outlet pressure difference must be at least 0.05 MPa.)
Number of turns of
regulating screw
Approx. 12 turns
Maximum operating
pressure
0.8 MPa
Maximum operating
temperature
60℃
Materials of parts in
contact with fluids
(A) Al, brass, POM, NBR
(SS) SUS316, fluorocarbon resin, FKM
Connection end Rc 1/8 (M8 + Rc 1/8)
