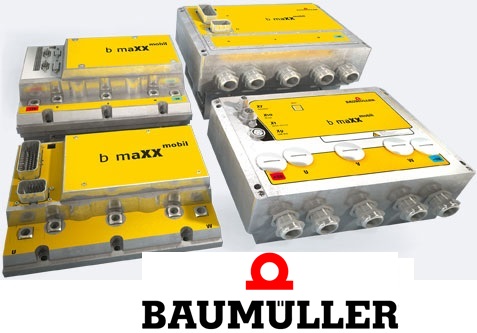

b maXX mobil bộ điều khiển Baumuller Vietnam ANSdanang

Technical data b maXXmobil - with galvanic isolation

metric / imperial
  Protection IN[A] IMAX[A] Battery voltage [V] ±10% Control voltage [V DC] Dimensions WxHxD [mm]

048-040-x-IP20 IP20 40 80 12 - 48 12 - 24 244 x 194 x 90
048-040-x-IP66 IP66 40 80 12 - 48 12 - 24 280 x 200 x 91
048-060-x-IP20 IP20 60 120 12 - 48 12 - 24 244 x 194 x 90
048-060-x-IP66 IP66 60 120 12 - 48 12 - 24 280 x 200 x 91
048-125-x-IP20 IP20 125 250 12 - 48 12 - 24 244 x 194 x 90
048-125-x-IP66 IP66 125 250 12 - 48 12 - 24 280 x 200 x 91
048-225-x-IP20 IP20 225 450 12 - 48 12 - 24 244 x 194 x 90
048-225-x-IP66 IP66 225 450 12 - 48 12 - 24 280 x 200 x 91
120-050-x-IP20 IP20 50 100 12 - 120 12 - 24 244 x 194 x 90
120-050-x-IP66 IP66 50 100 12 - 120 12 - 24 280 x 200 x 91
120-100-x-IP20 IP20 100 200 12 - 120 12 - 24 244 x 194 x 90
120-100-x-IP66 IP66 100 200 12 - 120 12 - 24 280 x 200 x 91
120-150-x-IP20 IP20 150 300 12 - 120 12 - 24 244 x 194 x 90
120-150-x-IP66 IP66 150 300 12 - 120 12 - 24 280 x 200 x 91

Technical data b maXXmobil - without galvanic isolation

metric / imperial
  Protection IN[A] IMAX[A] Battery voltage [V] ±10% Control voltage [V DC] Dimensions WxHxD [mm]

48-040-X-IP20-NI IP20 40 80 12 - 48 12 - 24 244 x 194 x 90
48-060-X-IP20-NI IP20 60 120 12 - 48 12 - 24 244 x 194 x 90
48-125-X-IP20-NI IP20 125 250 12 - 48 12 - 24 244 x 194 x 90
48-225-X-IP20-NI IP20 225 450 12 - 48 12 - 24 244 x 194 x 90

x =^ Resolver = RES
   =^ Encoder = END
   =^ SINCOS 1 Vss = SIN

Subject to modification
