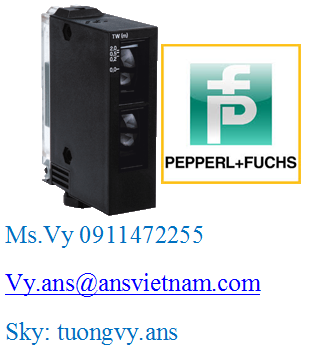

background-suppression-sensor-rlk23-8-h-2000-ir-31-104-116-p-f-viet-nam-anh-nghi-son.png
General specifications
Detection range 50 ... 2000 mm
Light source IRED
Light type modulated infrared light
Black/White difference (6 %/90 %) < 20 %
Diameter of the light spot 50 mm at 2000 mm sensor range
Angle of divergence 1.5 °
Functional safety related parameters
MTTFd 850 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Function indicator LED yellow, lights up with receiver lit
Control elements Programming switch for light/dark switching
Control elements Sensing range adjuster
Electrical specifications
Operating voltage 12 ... 240 V AC , 10 ... 30 V DC (automatic adaption to +UB)
Output
Switching type light/dark on
Signal output 1 relay output, 1 alternator
Compliance with standards and directives
Standard conformity
  Product standard EN 60947-5-2:2007
IEC 60947-5-2:2007
Approvals and certificates
EAC conformity TR CU 020/2011
TR CU 004/2011
Mechanical specifications
Degree of protection IP65
Connection terminal compartment
Material
  Housing Terluran® GV15
  Optical face glass
