Becon_GNEXB2LD2DC024AB1A1R/R

Xuất sứ: USA

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: E2S VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

Mô tả:

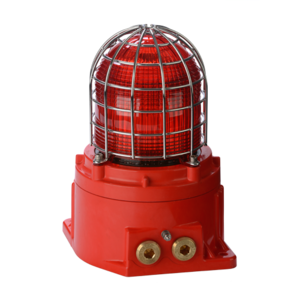

The GNExB2LD2 utilises an array of high power Cree® LED’s, orientated to optimise visibility in any direction. The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 174 candela. Alternatively one of the five flashing modes, with a light output of up to 338 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device. The field replaceable colour filter enhances the light output and is constructed from UV stable PC. SIL1 compliant to IEC61508 (2010) as standard.

Đặt tính:

  • Robust, corrosion proof GRP (glass reinforced polyester) enclosure
  • Ingress protection IP66
  • Automatic synchronisation on multi-beacon systems
  • Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady modes
  • Three remotely selectable stages/channels on DC versions.
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens colour filter
  • Stainless steel fixings
  • Triple cable entries
  • Duplicate cable terminations
    (in & out for daisy-chain installations)
  • SIL1 compliant to IEC61508 (201
