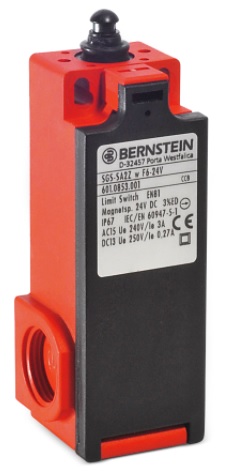

Bistable Safety Switch SGS , Bernstein Viet Nam
The SGS is a bistable safety switch with remote release facility. Once switched, the SGS remains in this position until it is manually reset at the plunger or via an external button. A built-in solenoid actuator controls the release action.
*
- Plunger indicates switch status
- Plunger groove for manual reset
- 2 versions: 230 V AC and 24 V DC
- Reset via built-in solenoid actuator
- 3 cable outlets M20 x 1.5
- Switching functions: 2 NC contacts
- TÜV EN 81 approval
- Other actuators from the standard
range on request
*
- In lift construction
- In door and gate systems
- In wind power stations
- Lift pre-switching (speed limiter)
- Monitoring of emergency release function
- Machine construction applications where
specific reset of the switch is required - Use in areas difficult to access
- Remote monitoring and reset over large distances
*
|
Art. No. |
Type |
|
6010153027 |
SGS-SU1Z W F6 230V |
|
6010853001 |
SGS-SA2Z W F6 24V |
|
6010853002 |
SGS-SA2Z W F3 24V |
|
6010853003 |
SGS-SA2Z W F6 230V |
|
6010853004 |
SGS-SA2Z W F3 230V |
---
