FCS Consumption Kit for Marine Use (Bộ thử giám sát tiêu thụ nhiên liệu dùng cho ngành hàng hải)

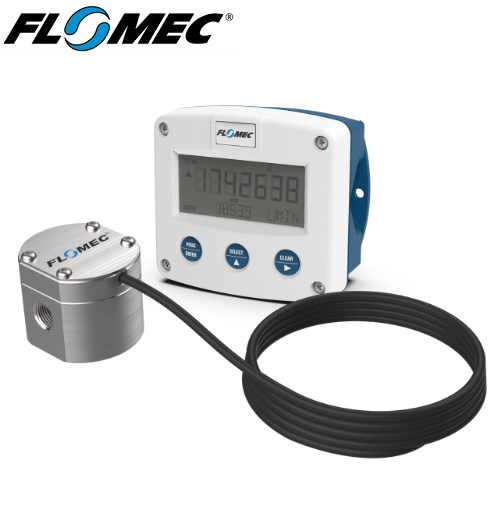

FLOMEC® Fuel Consumption System (FCS) is a complete fuel monitoring system that comprises 2x EGM positive displacement meters coupled with an F127 flow instrument for accurate measurement of fuel consumption rates and total fuel consumption. The FCS can accurately measure fuel consumption of combustion engines by correcting for temperature differences from the inlet to the outlet of the engine. Pulsating flow electronics, eliminating error due to fuel injection pulsation, coupled with integral PT100 resistance thermometers in FLOMEC’s renowned positive displacement meters gives an accurate and economic fuel consumption measurement solution for all engine sizes.

KIT SELECTION
Although each Fuel Consumption Kit consists of the same items, the size of the meter and the process connections change depending on the rate of flow, which is a direct correlation to the size of the engine.

A typical diesel fuel loop system would on average have 3.5 times more fuel in its line than what the engine consumes at full load. With this in mind, selecting the right kit based on the engine’s power output is important to ensure accuracy and the positive displacement meters’ longevity.

The graphs depicted here should be used as a guide when determining the size of kit is required.

KIT INCLUDES:

• 2 x EGM-Series Electronic Flowmeter
• 1 x F127 Totaliser
• 2 x Meter Brackets
• 1 x Fuel Strainer plus Connector
• Cable Glands

FEATURES / BENEFITS

EGM Flowmeter

• Flow Rates: 0.50 GPH – 21.1 GPM (2 L/hr – 80 L/min)
• Sizes: 1/4″ – 3/4″ (6 mm – 20 mm)
• Engine Power: 7.5HP – 5000HP (Please consult distributor for larger engines)
• Temperature Range: -40°F – +176°F (-40°C – +80°C)
• Body Material: Stainless Steel 316
• Rotor Material: PPS (Stainless Steel 316 for EGM006 meters)
• Cable Length: 2 meters (can extend using cable connector)e connector)

F127 Totalizer

• Casing: Robust IP66/IP67 field enclosure
• Display: 7-digit resettable total, 11-digit accumulated total with backlight
• Required Power Supply: 8 – 24V (dc) (back up power supply built in to save settings in case of power failure)
• Temperature Limit: -40°F – +176°F (-40°C – +80°C)
• Output Options: 4-20mA and pulse output available

APPLICATIONS

The FCS can accurately measure fuel consumption of combustion engines by correcting for temperature differences from the inlet to the outlet of the engine. Pulsating flow electronics, eliminating error due to fuel injection pulsation, coupled with integral PT100 resistance thermometers in FLOMEC’s renowned positive displacement meters gives an accurate and economic fuel consumption measurement solution for all engine sizes.
