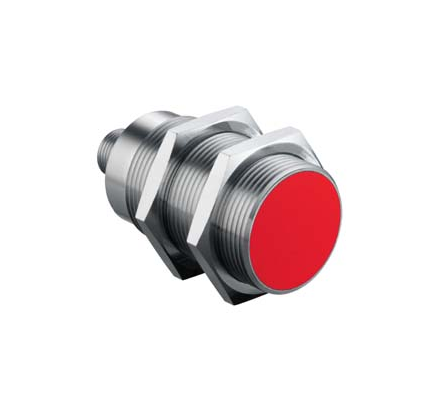

Model: IS 230MM/4NO-22E-S12  ǀ  Cảm biến cảm ứng

Basic data

Series: L230

Typ. operating range limit Sn: 22 mm

Operating range Sa: 0 ... 17.8 mm

Mechanical data

Design: Cylindrical

Thread size: M30 x 1.5 mm

Dimension (Ø x L): 30 mm x 73.5 mm

Type of installation: Embedded

Housing material: Metal

Metal housing: Chromed brass

Sensing face material: Plastic, Polybutylene (PBT)

Net weight: 155 g

Housing color: Red, RAL 3000, Silver

Type of fastening: Mounting thread

Standard measuring plate66 x 66 mm², Fe360
