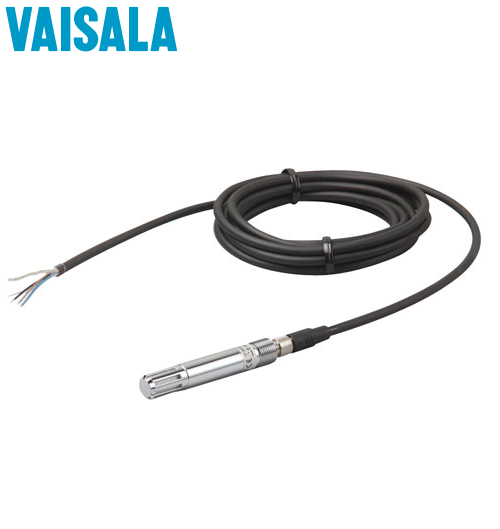

Cảm biến đo nhiệt độ và độ ẩm (Humidity and Temperature Probe) - Vaisala

Model: HMP110 TIOA13B1

Detailed information:

Measurement parameter(s)

Relative humidity
Temperature
Dew point temperature

Measurement range

0 ... 100 % RH / 0 ... 1 V (RH output) OR
-40 ... +80 °C (-40 ... +176 °F) Td / 0 ... 1 V
-40 ... +80 °C (-40 ... +176 °F) T / 0 ... 1 V
Other ranges available on request.

Measurement accuracy

RH accuracy:
At temperature +0 ... 40 °C (+32 ... +104 °F):
±1.5 % RH (0 ... 90 % RH)
±2.5 % RH (90 ... 100 % RH)
Temperature accuracy:
For modbus probes:±0.1 °C T (+15 ... +25°C)
For analog output probes ±0.2°C (0 ... +40°C)

Operating temperature

-40 ... +80 °C (-40 ... +176 °F) T

Operating voltage

5 ... 28 VDC / 8 ... 28 VDC with 5 V output

Housing classification

IP65
