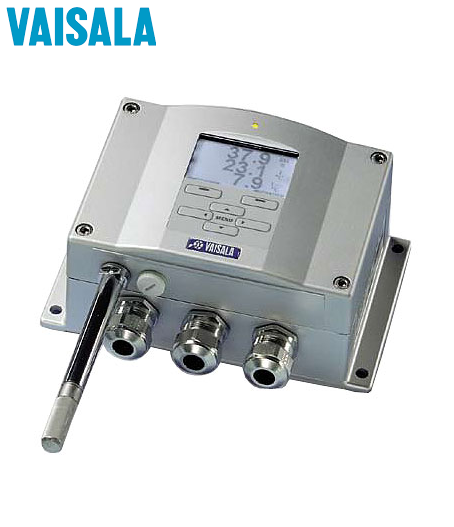

Cảm biến đo nhiệt độ và độ ẩm (Humidity and Temperature Transmitter)_Model: HMT330 7S1D001BBBB211A15ACBBA1

Cảm biến đo nhiệt độ và độ ẩm (Humidity and Temperature Transmitter) - Vaisala

Model: HMT330 7S1D001BBBB211A15ACBBA1

Specifications:

Transmitter type: HMT337 for high humidities
Probe cables: Probe 2m +180C
Additional temperature probe: T-probe, 2m, -70..+180°C 1/4 DIN Class B; Calculations: Cod RH+T+Td+a+Tw+x+h+pws With warmed RH-pro+T-pro ; No Display
Power supply: Standard (10...35V,24VAC)
Signal output: Analog Output 4...20mA
Analog output signals for Ch1: 0...100%RH
Analog output signals for Ch2: 0...100%RH
Analog output signals for Ch3: 0...100%RH
Analog output range for temperature: Temperature Range -40...+60C ; Output units: Non Metric Units
Option for module slot 1: Relay Module
Option for module slot 2: Relay Module
Cable bushings: Sealed Cable Gland M20x1.5
Transmitter installation: Wall Mounting Kit
Humidity sensor: Heated composite sensor HUMICAP180C
Sensor protection: PPS Grid with Steel Netting
Installation kit for probe: Duct Installation Kit For HMT333 and HMT337 ; User´s Guide HMT330 English
PC Accessories: RS232 Serial Interface Cable with D9 Female Connector ; No Calibration Contract ISO9001 Calibration
No Maintenance Contract
