Cảm biến đo nhiệt độ và độ ẩm (Humidity and Temperature Transmitters)

Xuất sứ: Finland

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: VAISALA VIET NAM

Liên hệ tư vấn

Bích Ngà

bichnga-sales@ansgroup.asia

0937 856 572

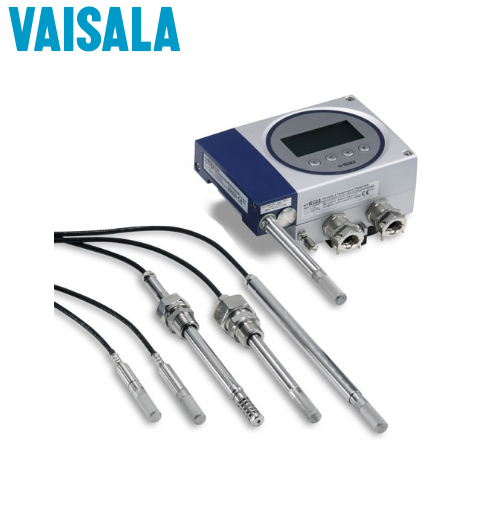

Cảm biến đo nhiệt độ và độ ẩm (Humidity and Temperature Transmitters) - Vaisala

Model: HMT3601A22BCC1B7BA5A10

Measurement Performance:

Parameters: Code RH+T; Display: Display on transmitter cover
Number of analog outputs: Channel 1 + 2 Output 4...20mA
Analog output signals for Ch1: Channel 1 RH (0...100%RH)
Analog output signals for Ch2: Channel 2 T (Range See Below)
Analog output range for temperature: Temperature Range 0...+60C
Output units: Metric Units
Cable bushings: Cond Uit Fitting NPT1/2"
Ex certification and issuer: Ex Certification, Tiis
User's guide: User´s Guide HMT360 English
Probe length and probe cable length: HMP301 No cable
Sensor type: Humicap 180r
Calibration certificate: Calibration Certificate
Sensor protection: PPS Grid with Steel Netting
Installation kit for probe: No Installation Kit
