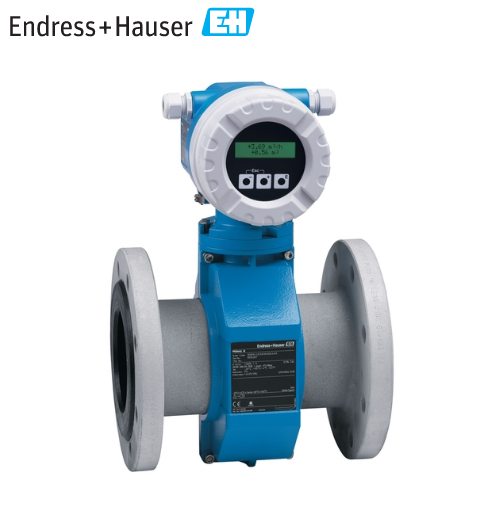

Cảm biến lưu lượng điện từ (Electromagnetic flowmeter)_Model: 10W80-UV0A1AA0A4AA

Cảm biến lưu lượng điện từ (Electromagnetic flowmeter) - Endress Hauser

Model: 10W80-UV0A1AA0A4AA

Features and specifications:

Measuring principle: Electromagnetic

Product headline: The sensor with degree of protection IP68 (Type 6P enclosure) combined with a highly cost‐effective transmitter. The specialist in the water and wastewater industry for the most demanding applications.

Sensor features: Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure).

Transmitter features: Cost-effective – designed for easy applications and direct integration. Safe operation – display provides easily readable process information. Fully industry compliant – IEC/EN/NAMUR. 2-line display with push buttons. Device as compact or remote version.

Nominal diameter range: DN 25...2000
                             1"...78"

Wetted materials: Liner: polyurethane; hard rubber

Measured variables: Volume flow

Max. measurement error: ±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s)

Measuring range: 9 dm3/min to 110 000 m3/h (2.5 gal/min to 700 Mgal/day)
