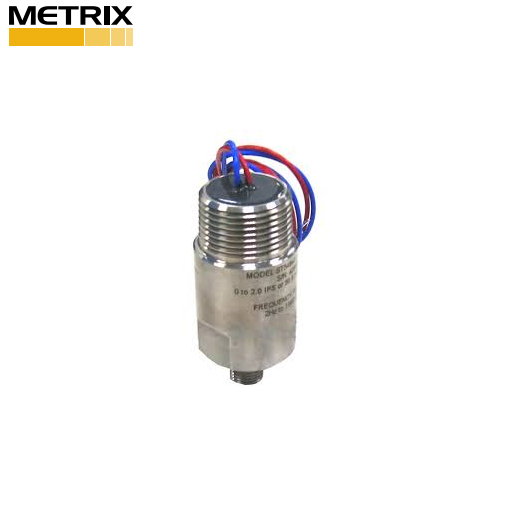

Cảm biến rung (IPT Seismic vibration transmitter)-Metrix

Model: ST5484E-153-0080-00

Specifications:

#Inputs:

Supply Voltage (see also note under max loop resistance): 11 – 29.6 VDC (24 VDC nominal) (intrinsically safe); 11 – 30 VDC (24 VDC nominal) (explosion proof and non-incendive)

Circuit-to-Case Isolation: 500 Vrms

#Outputs:

4-20 mA: Proportional to velocity full scale range (4mA = 0 vibration, 20mA = full scale vibration)

Operating Temperature: -40°C to +100°C (-40°F to +212°F)

Sensitive Axis: Same as mounting stud axis
