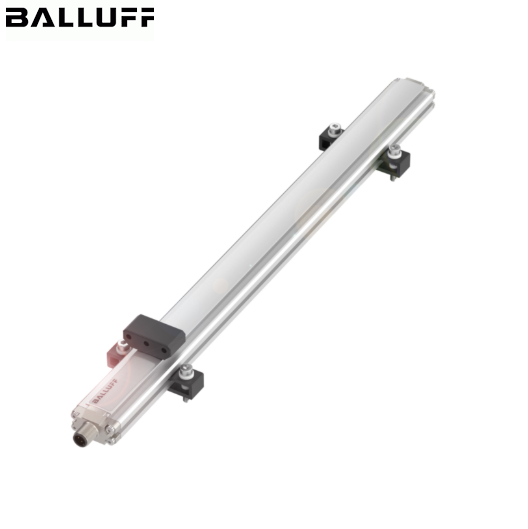

Cảm biến từ (Magnetostrictive Sensors)_Order code: BTL1CEA BTL6-U110-M0200-PF-S4

Cảm biến từ (Magnetostrictive Sensors)-Balluff

Order code: BTL1CEA

BTL6-U110-M0200-PF-S4

Đặc điểm chính:

Style: Profile series

Mounting: Mounting clamps

Housing material: Aluminum

Magnets, number max.: 1

Connection: Connector, M12x1, 4-pin

Interface: IO-Link 1.1

Measuring range: 200 mm

Sampling frequency max.: 1000 Hz

Resolution: ≤ 5 µm

Non-linearity max.: ±200 µm

Repeat accuracy: ≤ 30 µm

Operating voltage Ub: 18...30 VDC

Ambient temperature: -25...70 °C

Protection degree: IP67

Approval/Conformity: CE, cULus, EAC, WEEE
