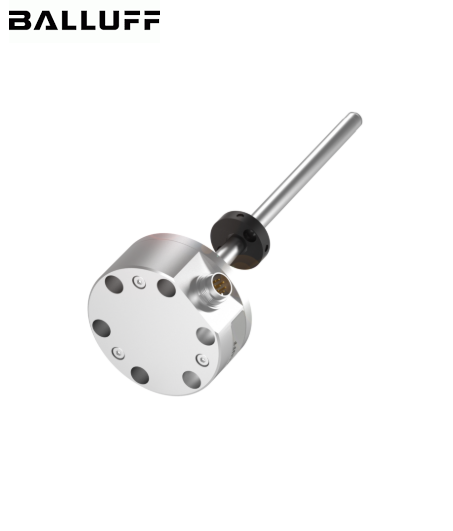

Cảm biến từ (Magnetostrictive sensors)_Order code: BTL2MMM BTL7-E570-M0106-K-SR32

Cảm biến từ (Magnetostrictive sensors) - Balluff

Order code: BTL2MMM BTL7-E570-M0106-K-SR32

Key features:

Style: Compact rod series

Mounting: Flange Ø 18h6 plus holes

Housing material: Stainless steel (1.4305)

Magnets, number max.:1

Connection: Connector, M16x0.75, 8-pole

Analog output: Analog, current 20…4 mA

Measuring range: 100 mm

Sampling frequency max.: 4000 Hz

Non-linearity max.: ±50 µm

Repeat accuracy: ± 10 µm

Operating voltage Ub: 10...30 VDC

Ambient temperature: -40...85 °C

Protection degree: IP67
