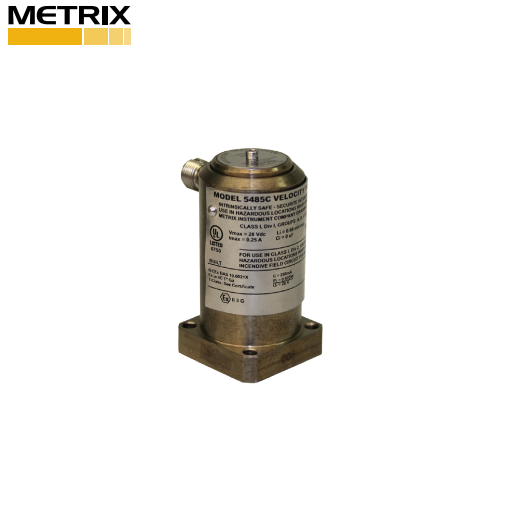

Cảm biến vận tốc (Velocity Sensor)_Model: 5485C-004_Metrix Viet Nam

Cảm biến vận tốc (Velocity Sensor)-Metrix Viet Nam

Model: 5485C-004

Thông số kỹ thuật

Axis Orientation: Any

Sensitivity: 105, 145, 150, or 200 mV/in/sec (see ordering options)

Sensitivity vs. Temperature: Less than 0.02%/°C

Cross-Axis Sensitivity: Less than 10%

Service Temperature: -54° to + 375°C (-65° to +707°F)

Frequency Response (+/- 3dB passband): 15 Hz to 2000 Hz

Maximum g-level: 50 g

Maximum Displacement: 1.8 mm (70 mils) pk-pk

Case-to-Coil Isolation (min):

•100 MΩ @ 20°C

•10 MΩ @ 200°C

•1 MΩ @ 375°C

Case Sealing: Welded; hermetically sealed
