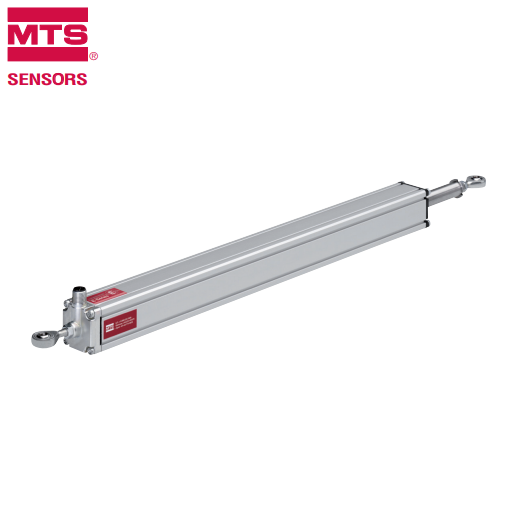

Cảm biến vị trí (Position sensor)_Model: ERM1250MD841S1G5100

Cảm biến vị trí (Position sensor) - MTS Sensors

Model: ERM1250MD841S1G5100

FEATURES

„ Linear, Absolute Measurement

„ Non-Contact Sensing Technology

„ Linearity Deviation Less Than 0.02% F.S.

„ Repeatability Within 0.005% F.S.

„ Two Outputs Available: • Analog (Voltage/Current) Forward or Reverse Acting • Digital-Pulse Output (Start/Stop)

„ Simple Sensor Parameter Upload (for Start/Stop)

„ Stroke Length Range: 50 mm to 1500 mm (2 in. to 60 in.)

„ Internal Electronics are Sealed for IP67 Ingress Protection

„ EMI Shielded and CE Certified

BENEFITS

„ Rugged, Cost Effective, Precise and Durable Non-wear Alternative to Linear Potentiometers

„ Extendable and Retractable Dual Rod Ends

„ The Magnet is Contained and Protected Inside The Sensor Housing

„ Over Voltage Protection to 36 Vdc and Polarity Protection up to -30 Vdc APPLICATIONS

„ Continuous Operation In Harsh Industrial Conditions TYPICAL INDUSTRIES

„ Factory Automation

„ Woodworking and Metal Forming

„ Material Handling and Packaging
